Specifications

industrial water chiller:
1.SANYO or customized compressor
2.17 years experience
3.OEM offered
4.CE certificate

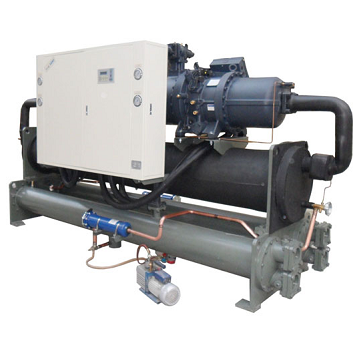

Industrial Water Chiller











Features of KL Chillers(economical water chillers):



1. Water-cooled screw chiller ( double compressors )

2. International top brands semi-closed 5:6 asymmetric twin-screw compressor,with international brands refrigeration valves.

3. 8-stage energy regulation approach can achieve 0-100% eight automatic energy adjustment.

4. Double compressors, two independent refrigeration system, they can run separately or work together, flexible and convenient.

5. Efficient external thread brass shell and tube type heat exchanger, ensure it work not affected by the ambient temperature.

6. International brands, "Schneider" Electrical, imported programmable controllerand LCD touch screen .

7. Multiple protection devices. Ensure stable operation of the unit perennial .

8. Wide variable range of frozen water , to meet different users requirements.

9. Using ethylene glycol as the carrier refrigerant makes the freezing water temperatureas low as -15°C.

Parameter Table:



Model			LSW-
			60SLS	80SLS	100SLS	120SLS	140SLS	160SLS	180SLS	200SLS	240SLS	260SLS	280SLS	300SLS	320SLS	360SLS	400SLS
Refrigerating capacity		10*4kcal/hr	16.92	23.06	30.27	40.17	44.09	54.89	60.07	65.02	71.57	85.18	89.94	98.47	110.73	128.96	141.63
		kw	196.80	268.20	352.00	467.20	512.80	638.40	698.60	756.20	832.40	990.60	1046.00	1145.20	1287.80	1499.80	1647.20
Compressor	Model		Advanced asymmetric semi-enclosed twin-screw type
	input power(kw)		47.80	63.00	93.80	105.40	114.80	136.00	149.80	163.40	181.60	211.00	222.80	241.40	268.00	308.80	342.60
	Running current(A)		79	104	156	175	190	225	248	271	301	350	369	400	444	512	568
	Capacity control		0-25%-50%-75%-100%
Refrigerant	type		R22
Condenser	form		Horizontal shell and tube type heat exchanger
	cooling water flow(t/h)		44	60	80	103	113	139	153	166	183	216	228	250	280	326	358
	waterpipe joint		DN65		DN80		DN100					DN125			DN150
	water pressure drop(kpa)		≤76
Evaporator	type		Horizontal shell and tube type heat exchanger
	Frozen water flow(t/h)		35	48	63	84	92	115	126	136	150	178	188	206	232	270	296
	waterpipe joint		DN80	DN100	DN65×2	DN80×2	DN100					DN125			DN150
	water pressure drop(kpa)		≤76
Safety protection device			High and low pressure protection, phase sequence protection, current overload protection, water alarm, time delay protection, overheating protection
Dimension	length(mm)		3300	3300	3500	3500	3500	3800	3800	3800	3800	3950	3950	3950	3950	3950	3950
	width(mm)		900	900	1100	1100	1300	1300	1300	1300	1300	1300	1300	1300	1500	1500	1500
	height(mm)		1500	1500	1600	1600	1800	2000	2000	2000	2000	2000	2000	2000	2300	2300	2300
Weight of whole machine(kg)			1600	1800	2400	2400	2850	3300	3850	4200	4500	5350	5800	5950	6200	6850	7550

Remarks:

1.refrigerate condition :Freezing water inlet temp.12°C,outlet temp.7°C, cooling water inlet temp.30°C,outlet temp.35°C.

2.Unit safety working range: refrigerated water temp. 5-30°C.

3.Power system: 3¢/380V/50HZ, ±10%voltage fluctuation is allowed, ±2%phase voltages is allowed.

4.the above data is based on refrigerating fluid R22, if R134a,R407c is needed, please kindly tell us.

5.the dimension is for reference, always confirm before your order.
