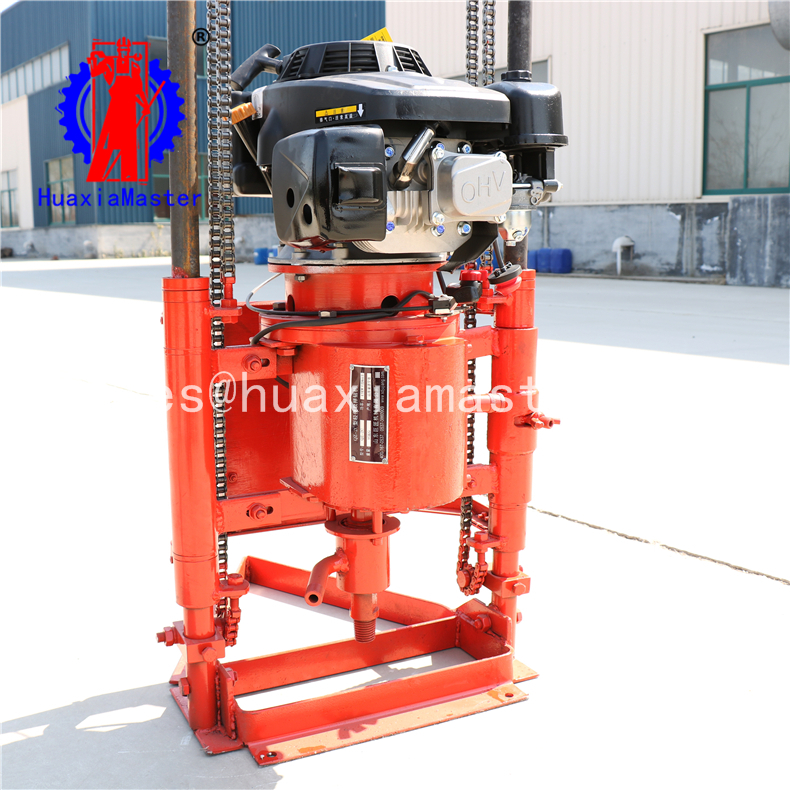

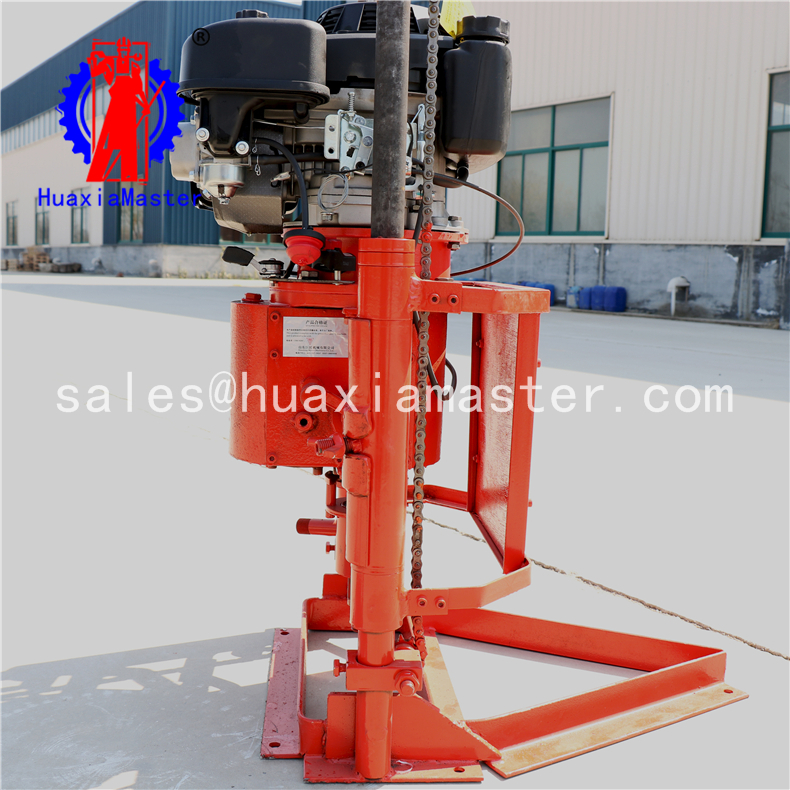

1.The brief introduction of QZ-2C portable core drill rig
QZ-2C type gasoline engine portable sampling drill for geological industrial and civil buildings, bridges, railway, highway, hydropower industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole, check out small household wells.
QZ-2C drilling rig feature: compact structure、small volume、light weight、two gears、easy movement.
2.The techincal parameter of QZ-2C gasoline core drilling rig
|
QZ-2C
|
|
End hole caliber (mm)
|
32-91
|
|
Drilling depth（m）
|
soil φ91：10-15m
stone φ91：5-10m
stone φ75：10-15m
stone φ60：15-20m
stone φ46：20-30m
|
|
Diameter of drill rod(mm)
|
30
|
|

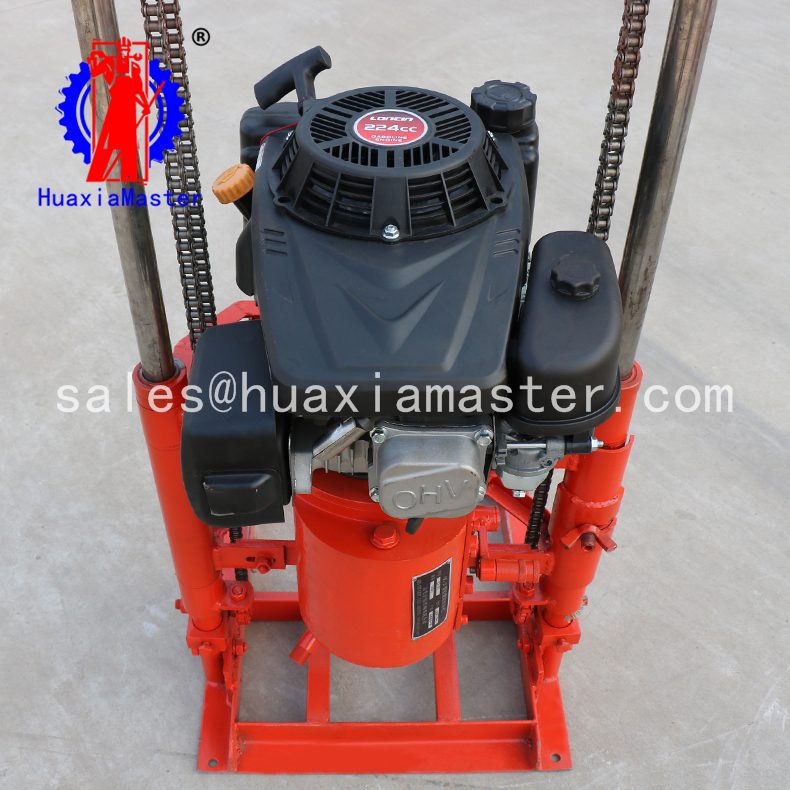

Gasoline engine
|
Soup(hp）
|
6(4.5kw)
|
|
Displacemen（cc）
|
224
|
|
Dimension（l*w*h）
|
600*450*1900
|
|
Weight（kg）
|
95
|
3.The packing list of QZ-2C portable sampling drilling machine with gasoline engine
|
Name
|
Model
|
Unit
|
Quantity
|
|
Gasoline core drilling rig
|
QZ-2C
|
set
|
1
|
|

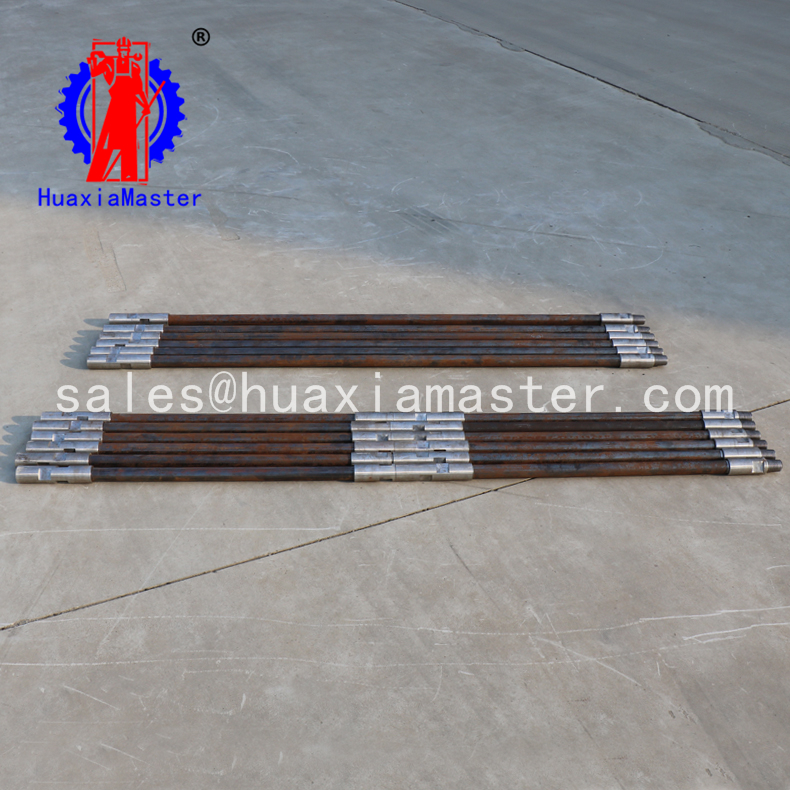

Drill rod
|
φ30*1500
|
root
|
6
|
|
Drill rod
|
φ30*800
|
root
|
14
|
|
Pipe joint
|
Φ38
|
pcs
|
20
|
|
Core tube joint
|
φ58/38
|
pcs
|
2
|
|
Core tube
|
φ58*800
|
root
|
1
|
|
Core tube
|
φ58*1500
|
root
|
1
|
|
Alloy bit
|
φ60
|
pcs
|
1
|
|
Diamond bit
|
φ60
|
pcs
|
1
|
|
Core tube joint
|
φ73/38
|
pcs
|
2
|
|
Core tube
|
φ73*800
|
root
|
1
|
|
Alloy bit
|
φ75
|
pcs
|
1
|
|
Diamond bit
|
φ75
|
pcs
|
1
|
|
Soil bit
|
Φ75
|
pcs
|
1
|
|
Plate fork
|
|
pcs
|
1
|
|
Water seal type
|
Y 30*50*10
|
pcs
|
4
|
|
Oil seal
|
30*50*10
|
pcs
|
1
|
|
Pipe tongs
|
18
|
pcs
|
2
|
|
Monkey wrench
|
|
pcs
|
1
|
|
Shaft snap ring clamp
|
|
pcs
|
1
|
|
Hole snap ring clamp
|
|
pcs
|
1
|
|
Clamp
|
|
pcs
|
1
|
|
Cross screwdriver
|
|
pcs
|
1
|
|
Hex wrench
|
|
pcs
|
1
|
|
Steering wheel
|
|
Pcs
|
1
|
（If you need a wooden base, a high pressure pump, and a high pressure water pipe, please explain）
