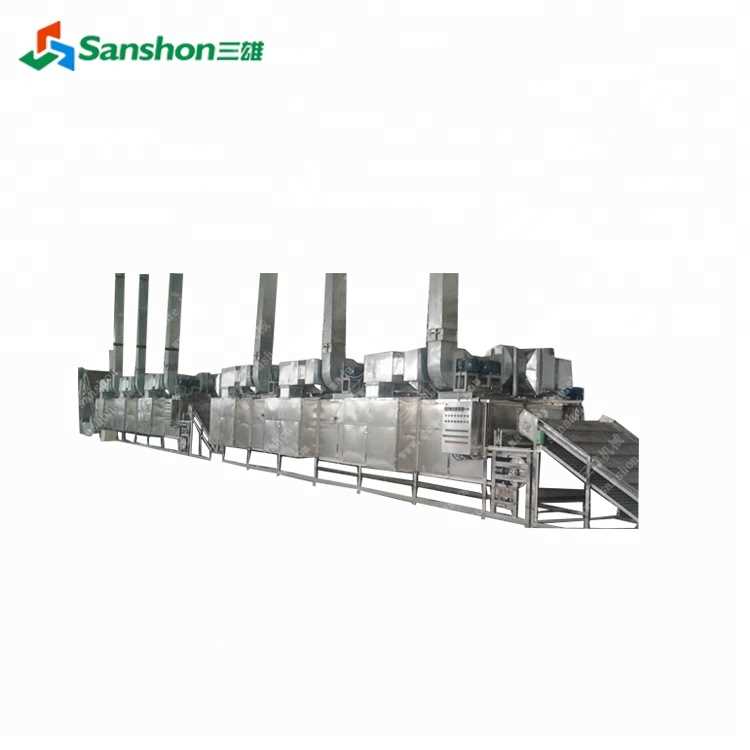

HGD (originally called SBJ) series belt dryer is a new-designed drying equipment developed by our company for improving productivity and reducing labor cost. It is featured by large capacity, high efficiency, good controllability and high degree of automation. It is the most commonly-used drying equipment in fruit and vegetable processing factory both at home and abroad.

HGD series belt dryer consists of drying cabinet, heating device, fans, belt and automatic control system. The conveyor belt can be stainless steel mesh belt, stainless steel perforated plate belt, or high temperature resistance nylon belt. Partial hot air can be recycled.



Model	Drying area	Drying capacity	Steam consumption	Drying temp.	Drying time	Installed power	Overall dimension (L*W*H)
HGD-2S-32	32sqm	200-1000kgH2O/H	1-2t/h, peak value	<120°C	20-100min	63.75kw	17.8*3.15*4.0m

Model	Drying area (m2)	Drying capacity (kgH20/h)	Steam consumption (t/h, peak value)	Drying temp. (°C)	Drying time (min)	Installed power (kw)	Overall dimension (m)
HGD-1.7M-62	62	<620	1.2	<110	15-75	25.35	9.3*3.2*3.6
HGD-1.7M-78	78	<780	1.6			37.25	11.3*3.2*3.6
HGD-1.7M-94	94	<940	2.0			46.95	13.3*3.2*3.6
HGD-1.7M-110	110	<1100	2.4			46.95	15.3*3.2*3.6
HGD-1.7M-127	127	<1270	2.8			56.65	17.3*3.2*3.6
HGD-1.7M-144	144	<1440	3.2			58.85	19.3*3.2*4.0
HGD-1.7M-160	160	<1600	3.6			68.55	21.3*3.2*4.0
