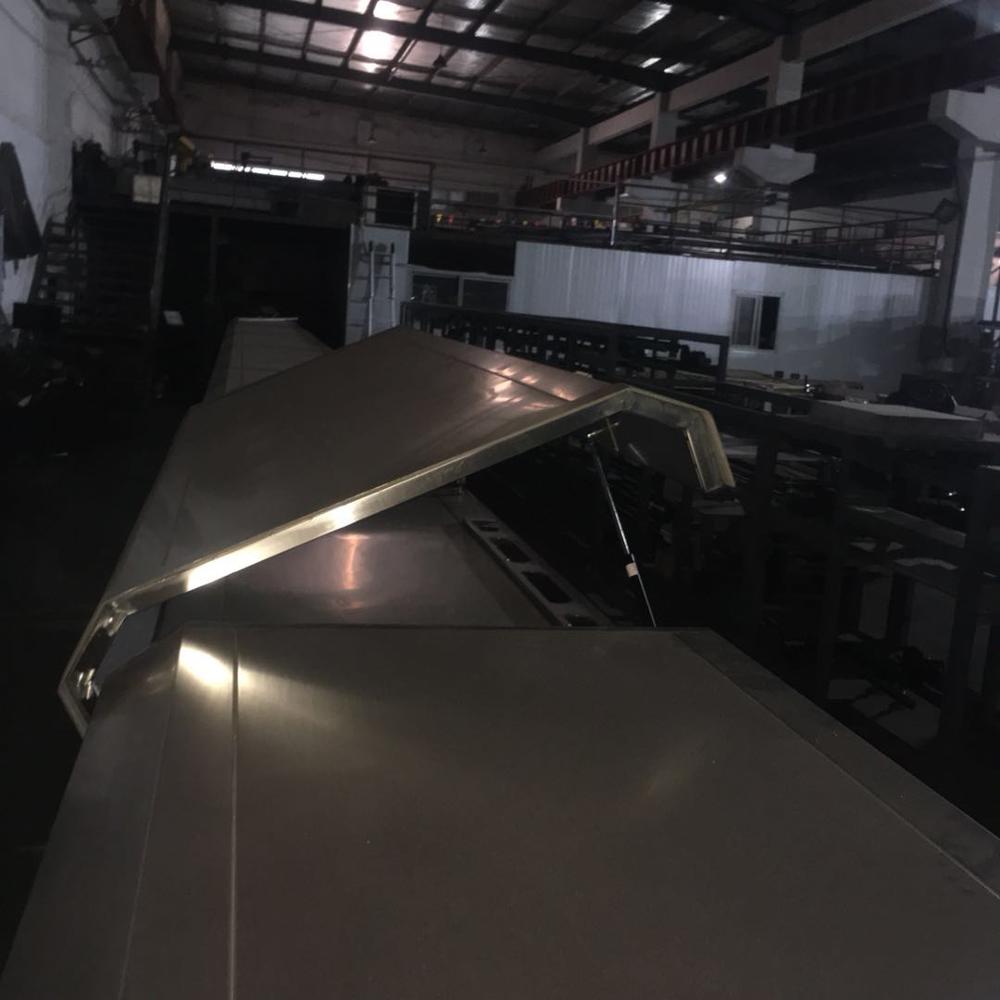

high quality chocolate cooling tunnel with advanced technology for sale

FOB Reference Price / Min.Order Quantity

USD 36500.00-70000.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:30--60 days

Packaging Details: wooden case

Port: SHANGHAI

Payment Terms: L/C , T/T , other

Product Details Company Profile

1.The frame is made of rectangle stainless steel tube. The dimension of the tube is 75*45*2.5mm. The front shelf, back shelf, connecting shelf and evaporator shelf can be disassembled and connected.
2.The sealing plate for heat insulation is made of sandwich stainless steel plate of 30mm thick.
3.The external part of the cover is made of stainless steel(split type welding technology). The internal part is made of foam board.

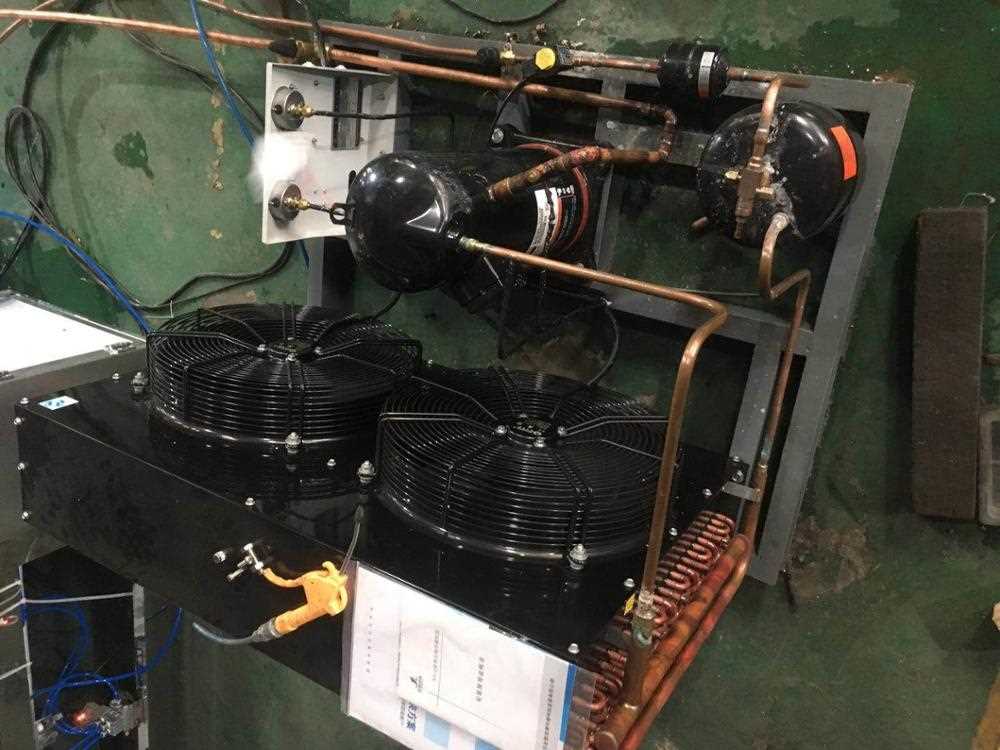

4.There are 3 pcs of evaporators(40㎡/pc) and 3 sets of refrigerating unit(5hp/pc).
5.It is equipped with temperature sensor. The temperature is controlled by the sensor.
6.The front and back shelf are equipped with pneumatic rectifying device.
7.The power of the conveyor motor is 1.5kw(frequency conversion).
8.The speed of the conveyor belt is 2m/min to 7m/min. It is made of PU. The width is 900mm and thickness is 0.8mm.
9.The total power of the refrigerating units is 3.75kw*3=11.25kw.
10.The power of the air cooler is 1.5kw.
