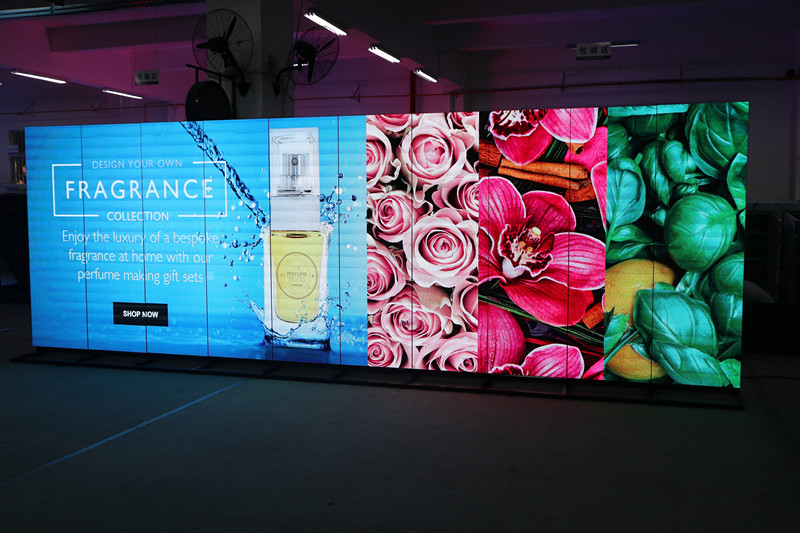

digital led display

FOB Reference Price / Min.Order Quantity

USD 0.00-1800.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time:3 days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: shenzhen

Payment Terms: ,

Model Type	PT3 S (standard)	PT3 L (Linkable)
Pixel pitch	3 mm	3mm
LED Type	SMD 2121 Mat Black	SMD 2121 Mat Black
Pixel type(R / G / B)	1R1G1B	1R1G1B
Module Pixel	64 x 64	64*64
Module Resolution	4,096	4,096
resolution (HxW)	192×640	192*640
Module size	192 x 192mm	192*192mm
Viewing Distance	≥ 3 M	≥ 3 M
brightness	≥ 1,000 cd/m²	≥ 1,000 cd/m²
Ratio	8192:1/16384:1	8192:1/16384:1
Viewing Angle	120° (H)/120°(V)	120° (H)/120°(V)
Weight	35kg	35kg
Frame Size	1930mm(H)X584mm(W)X45mm(T)	1930mm(H)X584mm(W)X45mm(T)
Case Material	Aluminum	Aluminum
Grayscale	16 bits RGB	16 bits RGB
Video frame rate	60 Hz	60 Hz
Refresh rate	> 1,200 Hz	> 1,200 Hz
Drive mode	1/16 scan	1/16 scan
Input voltage	AC90-240V	AC90-240V
Maximum Power Consumption	600W	600W
Average Power Consumption	280W	280W
Life Span	≥ 100,000 Hours	≥ 100,000 Hours
MTBF	≥ 10,000 Hours	≥ 10,000 Hours
Application	Indoor/ Semi-Outdoor	Indoor/ Semi-Outdoor
Control method:	Asynchronous(WIFI/USB/LAN)	Asynchronous(WIFI/USB/LAN/HDMI)
Temperature Operating (℃)	.-40°～+75°	.-40°～+75°
Working Humidity	10%–95%RH	10%–95%RH
Power Protection	Over-current/Over-voltage protection	Over-current/Over-voltage protection
Compliance	CE/ETL/ UL	CE/ETL/ UL
Joint screen qty(PCS)	1	2 to 10
Joint gap(mm)	Less than 3mm	Less than 3mm
