Specifications

washer parts, ball type,square/bloack body, thread to thread ball valve, interchangable with BKH MKH or GE, High working pressur

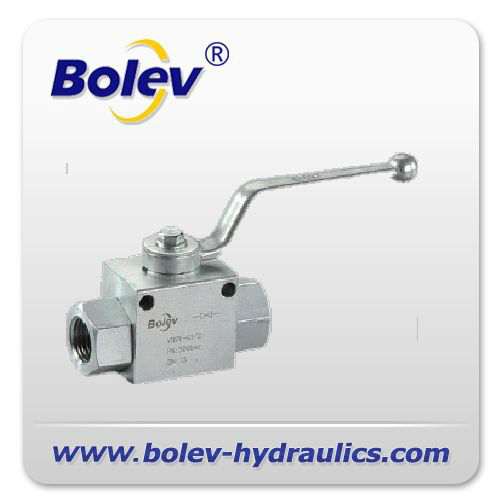

VH2V high pressure ball valve with mounting holes, good for shut off a hydraulic pipe line, applicable in many industries, such as machine build, farm machinery, metallurgy, oil and gas, ocean vessel industry and construction mobile hydraulics, it has many good points, please see followings:

• build with high strength material;
• 3 pieces structure;
• floating ball;
• blow out proof stem;
• positive sealing;
• Zero leakage;
• working pressure up to 500bar;
• direct interchangeable with international brands;

OEM and custom design is acceptable, but minimum order quantity will be requested.
Notice: high pressure ball valves must be open or close fully, throttle use is not allowed.

Warrany: 13 months after date of on board.



Description		VH2V(Square machined body
Structure		3 pieces design, floating ball, blow out proof structure, provide full flow and positive sealing, Zero leakage
Thread		G/BSP (DIN ISO 228),NPT (ANSI B1.20.1),SAE (SAE J 514 UN/UNF),LR/ SR (DIN 2353)
Body		Carbon steel, SS304, SS316
Ball		Carbon steel, Bras, SS304
Ball seat		POM, Nylon, PTFE, PEEK, Steel Ring re-inforced PTFE Seats
Working Temperature		NBR (-25~100°C), FPM (-30~170°C)
Handle		Casting zinc straight/bent handle, steel straight/bent handle or without handle
Surface		Phosphoric, Cr3+ Silver Zinc
Additional		electrical or pneumatic actuators, lock handles/plates; custom mounting holes/paddles
Important		throttle use not allowed, only full open or close
Part No.	PN		DN	LW	RA	d1	i	L	L1	B	H	h1	h2	SW1	SW2
VH2V-NPT1/4	500		6	6	/	NPT1/4	14	69	40	26	45	13.5	33	9	22
VH2V-NPT3/8	500		10	10	/	NPT3/8	14	72	42	32	49	16	36	9	27
VH2V-NPT1/2	500		13	12	/	NPT1/2	16	83	48	35	49	17	40	9	30
VH2V-NPT3/4	315		20	20	/	NPT3/4	18	95	60	48	70	25	55	12	41
VH2V-NPT1	315		25	25	/	NPT1	21	113	65	57	79	28.5	64	12	50
VH2V-G1/4	500		6	6	/	G1/4	14	69	40	26	45	13.5	33	9	22
VH2V-G3/8	500		10	10	/	G3/8	14	72	42	32	49	16	36	9	27
VH2V-G1/2	500		13	12	/	G1/2	16	83	48	35	49	17	40	9	30
VH2V-G3/4	315		20	20	/	G3/4	18	95	60	48	70	25	55	12	41
VH2V-G1	315		25	25	/	G1	21	113	65	57	79	28.5	64	12	50
