Product Name

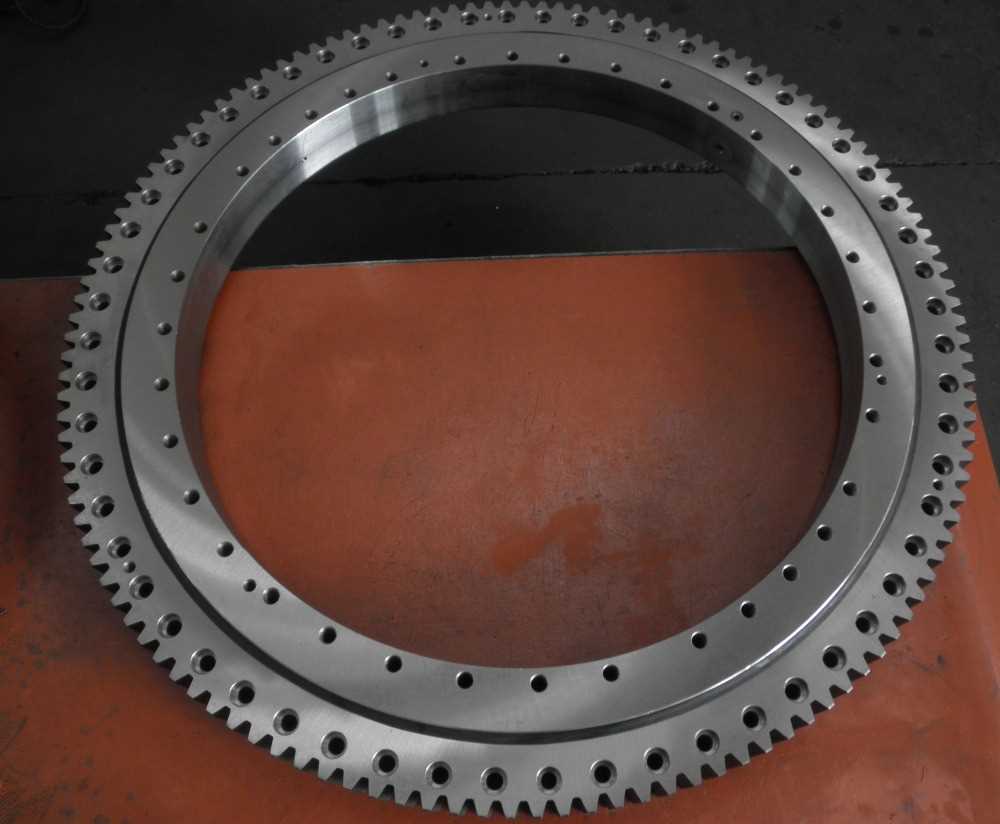

Slewing Bearing for Crane Accessories for PSL/Rotek/Kaydon

Model Number

EGSBM 1327 984 114

Reference Number

2045A7/HH5012

Application

Crane

Gear Option

External Gear

Seal Type

Rubber Sealed

Features

Single Ball Four Point Contact

Brand

Leadway/UIPI

B.C. Diameter

1244.6 mm ( outer ring )
1022.35 mm ( inner ring )

Outer diameter

1326.9 mm (52.24")

Inner diameter

984.25 mm (38.75")

Ball Diameter

50.8mm (2")

Height

114.3mm (4.5")

Axial play

0.00 mm~0.15 mm (0.00~0.006")

Radial play

0.00 mm~0.076 mm (0.00~0.003")

Core hardness

248-320HB quenching and tempering

Raceway Hardness

55-60HRC quenching

Raceway Effective Hardeness Depth

1.8~2.3 mm

Material

GB42CrMo (DIN42CrMo4/BS708A42/AISI4140)

Operating Temperature

-40°C to +50°C

Grease

EP2 lithium lubricating grease

Weight

403.6 kg

Place of Origin

Luoyang, Henan, China

Certificate

API Q1 Certificate (American Petroleum Institute) Quality Assured Firm
Qualified to be used in Petroleum machinery equipment. (The first and the only slewing bearing manufacturer in China)
ISO9001:2008 Certificate

Services

OEM Service, Customized Service, Design Service
