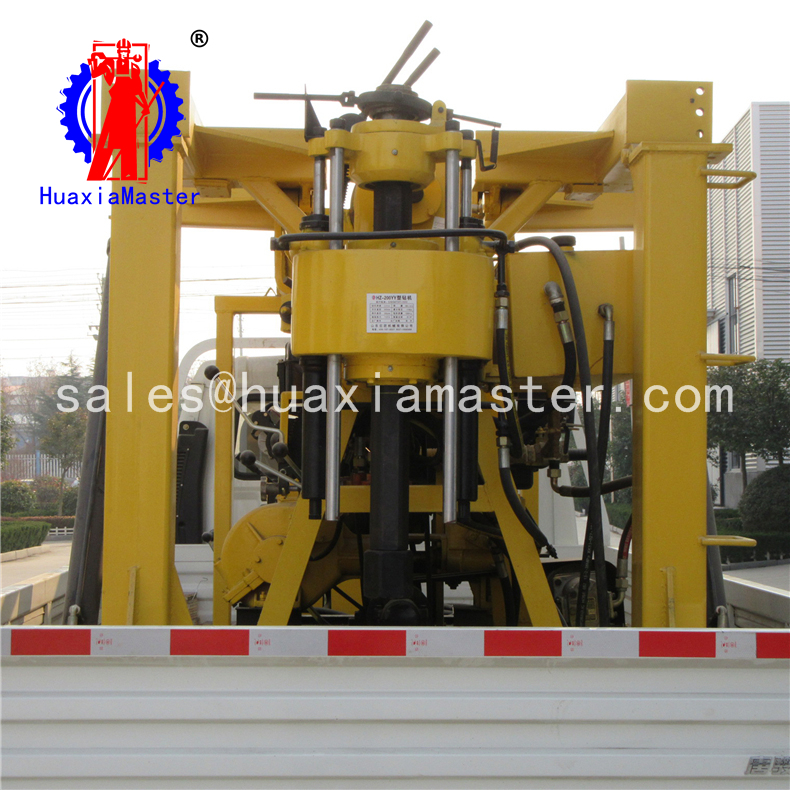

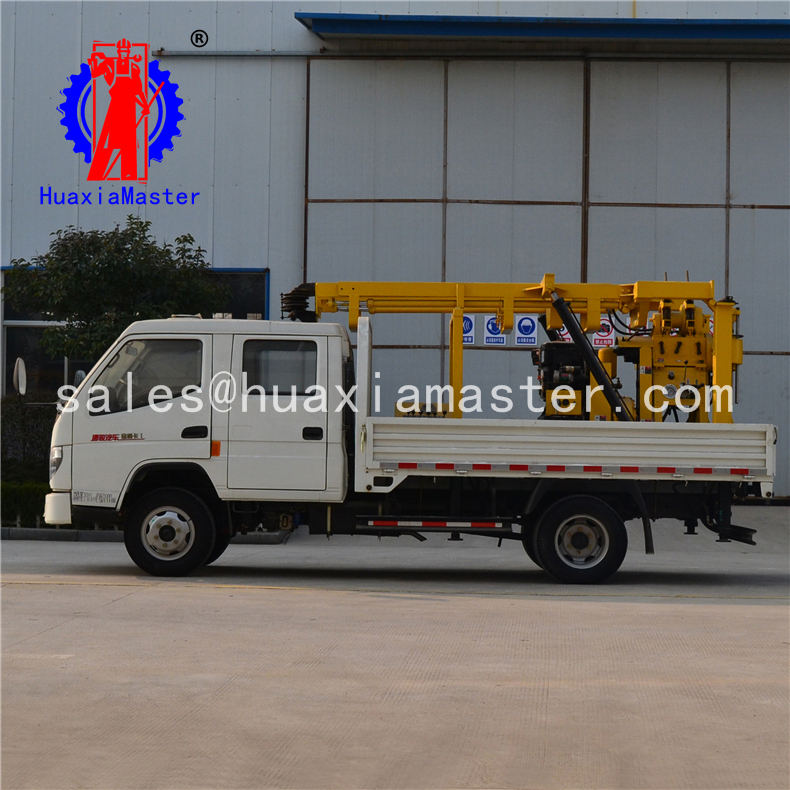

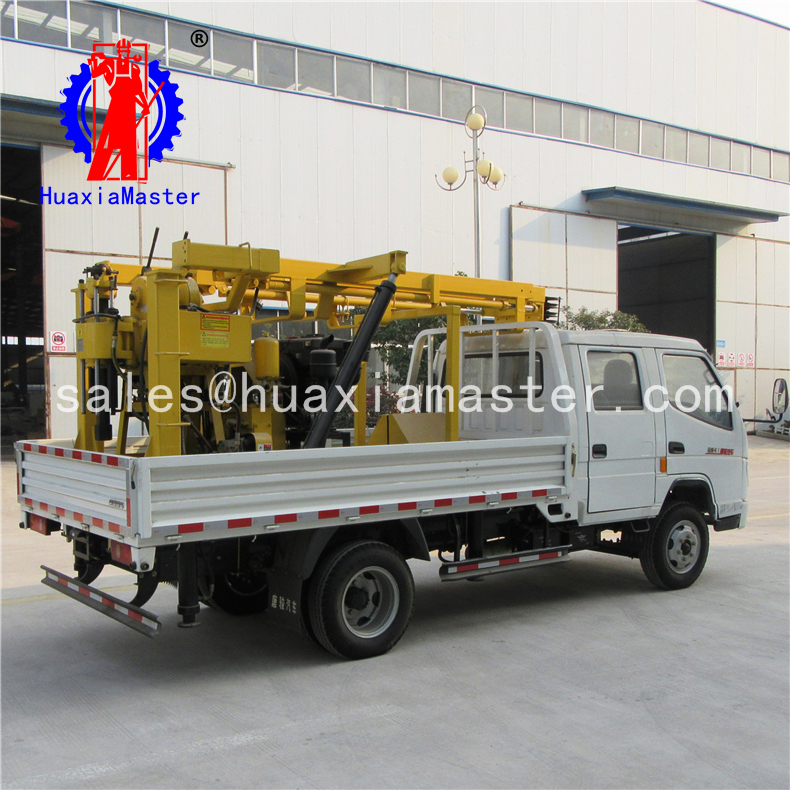

XYC-200 Vehicle-mounted Hydraulic Core Drilling Rig bore drilling rig machine

FOB Reference Price / Min.Order Quantity

USD 4500.00-4600.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:within three days

Packaging Details: wooden packaging

Port: qingdao

Payment Terms: , , , ,

1. Characteristics of XYC-200 vehicle-mounted hydraulic core drilling rig

XYC-200 is a multi-function vehicle-mounted hydraulic core drilling rig.the Tang Jun automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
It is equipped with high pressure,big flow BW160 mud pump,which can ensure drilling depth and diameter.
the rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
the hydraulic folding mast is safe and convenient to transport

2.Applications of XYC-200 vehicle-mounted hydraulic core drilling rig

3. Parameters of XYC-200 vehicle-mounted hydraulic core drilling rig

XYC-200 vehicle-mounted hydraulic core drilling rig
Drilling depth(m)		30-200
Drilling diameter(mm)		300-75
Drilling angel(mm)		90-75
Spindle rotating speed(r/min)		64/128/287/557
Spindle stroke(mm)		450
Main hoisting capacity (single line)(Kg)		1600
Main hoisting line capacity (m)		35
Hoisting speed(r/s)		17/35/75/151
Wireline diameter(mm)		12.5
Mast height(mm)		7000
Mast effective height(mm)		6500
Kelly/active pipe(mm)		59*53
Drill rod(mm)		42/50/60
Drill rig weight(kg)		1150
Power unit		Model	ZS1115 diesel engine
		Rated power	14.7kw/2200rpm
BW-160 mud pump		Rated flow(l/min)	160
		Rated pressure(mpa)	1.3
		Driving power(kw)	5.15
		Main machine weight (kg)	190
		Dimension(mm)	1110725965
Chassis	Model	95hp light truck The 3.3 meter steeplechase double light card
	Drive mode	4*2
	Power unit	Model	Quanchai 4B2-95C40
		Emission standard	GB3847-2005,GB17691-2005Ⅳ
		Rated power(kw)	70
		Rotating speed(r/min)	3200
