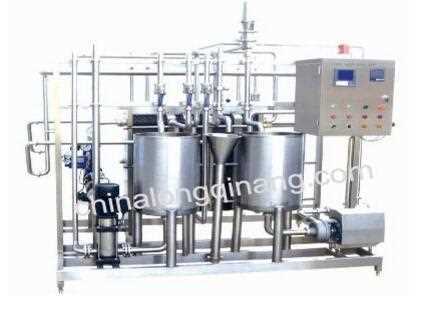

Whole set pasteurizing equipment Hit count 1243
FOB Reference Price / Min.Order Quantity
: Get Latest Prices
Processing Time:1 Days - 60 Days
Packaging Details:
STANDARD EXPORTING PACKAGE
Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other
Payment Terms: L/C , T/T , other
Description:
By adopting scientific treatment characterized by instant ultra high temperature, this system enables liquid foods including liquid products, vegetable protein milk, juice beverage and tea to be stricity sterilized and subsequently to be aseptically packaged, The sterilization temperature can be as high sa 135oC-143oC while the holding time lasts only 4-5second,so that he original nutrition, color and flavor can be preserved to the greatest extent with the quality guatrantee period being as long as 6-12 months ,The equipment is characterized by high heat recovery, compact structutre and stable temperature control.
Characterisitcs:
Production handling capcacity: 0.5～20t/h
Sterilization temperatuer: 137℃
Holding time: 5～15s
Control modes:Semi-automatic, automatic(PLC control,touch screen display)
Major configuretion:Designated pump for material ,balance barrel,hot water system ,temperature-controlling and recording instrument ,electrical control system and etc.
Parameters:
|
Name
|
Unit |
BR-UHT- 0.5 |
BR- UHT -1
|
BR-UHT-2 |
BR-UHT-3 |
BR-UHT-4 |
BR-UHT-5 |
BR-UHT-10 |
| Production capacity |
t/h |
0.5
|
1 |
2 |
3 |
4 |
5 |
10 |
| Heat-exchanging area |
㎡
|
10
|
12
|
24
|
34
|
44
|
52
|
100
|
| Inlet temperature of materials |
℃
|
5
|
5
|
5
|
5
|
5
|
5
|
5
|
| Oulet temperature of material |
℃
|
5
|
5
|
5
|
5
|
5
|
5
|
5
|
| Sterilization temperature |
℃
|
137
|
137
|
137
|
137
|
137
|
137
|
137
|
| Holding time |
S
|
5
|
5
|
5
|
5
|
5
|
5
|
5
|
| Inlet temperature of chilled water |
℃
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
| Magnification of chilled water |
_
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
| Magnification of hot water |
_
|
1.2
|
1.2
|
1.2
|
1.2
|
1.2
|
1.2
|
1.2
|
| Inlet pressure of steam |
MPa
|
≈0.8
|
≈0.8
|
≈0.8
|
≈0.8
|
≈0.8
|
≈0.8
|
≈0.8
|
| Interface size |
mm
|
25
|
32
|
38
|
38
|
51
|
51
|
63.5
|
| Power |
kw |
2
|
3
|
4
|
5
|
6
|
6
|
10
|
| Weight |
kg |
800
|
980
|
1080
|
1160
|
1350
|
1580
|
1880
|
| External dimensions(L×w×h) |
mm
|
1200×1200×1800
|
1500×1500×2000
|
2200×2000×2500
|
2400×2000×2500
|
2500×2000×2500
|
2600×2000×2500
|
2800×2000×2500
|
