Description:

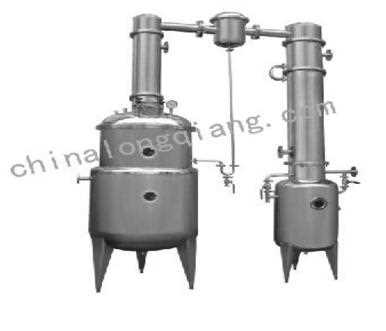

The device includes concentration tank,condensator,steam-liquid separator,cooler and liquid receving tank.The concentrator tank is of clip sleeve structure.The condensator is of line pipe type and the cooler is of tray pipe type.The device is suitable to concentrate in the pharmacy,foodstuff and chemisty and also can serve as reclamation of alcohol and simple reflux extraction.The fact that the part in contact with the material is made with stainless steel brings qualified anti-corrosion performance,meeting with the GMP standard.

Parameters:

Type Specifications	ZN20	ZN100	ZN200	ZN300	ZN500	ZN700	ZN1000	Zn2000
Evaporation capacity (kg/h)	﹤0.25
Steam pressure （Mpa）	20	40	60	80	100	130	160	350
Heating area （㎡）	0.4	0.6	0.8	1.1	1.2	2.0	2.5	5.5
Condensating area（㎡）	1.2	1.7	2.4	3.0	3.2	3.6	4.5	14
Cooling area（㎡）	0.25	0.35	0.45	0.6	0.7	0.85	1.1	3
liquid receving tank capacity（L）	15	45	60	76	100	125	140	185
Energy consumption（kg/h)	23	46	70	92	115	150	185	403
Vacuum (Mpa)	0.08
Vessel Type	grade 1
Weight equipment （kg)	410	470	605	715	862	1015	1250	2600
Size （mm)	1200x600x2200	1350x750x2200	1700x800x2700	1800x950x2850	2100x1200x3400	2400x1300x3400	2390x1300x3720	2730x1500x4700
