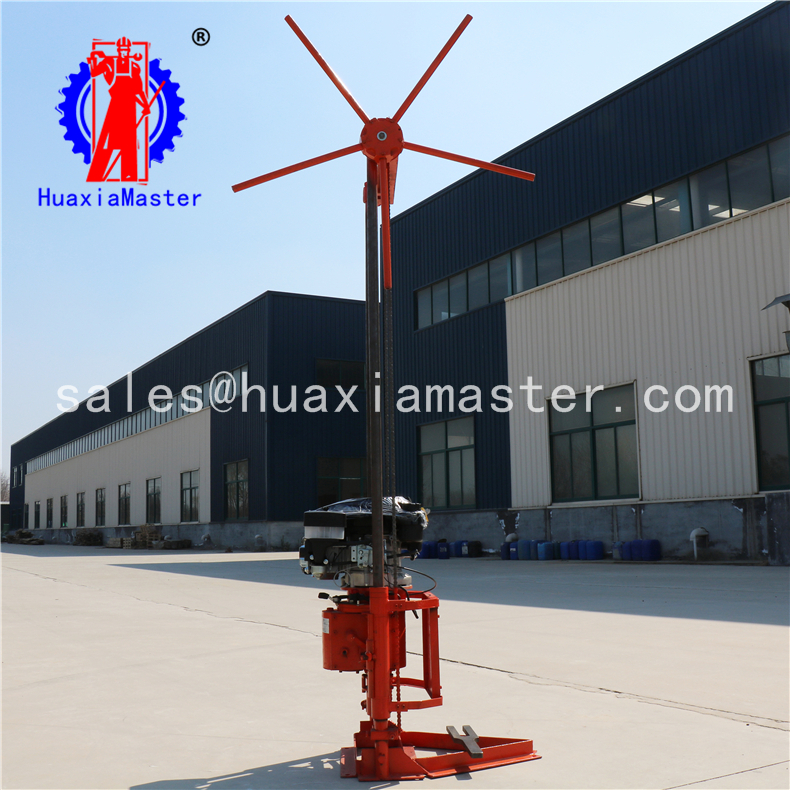

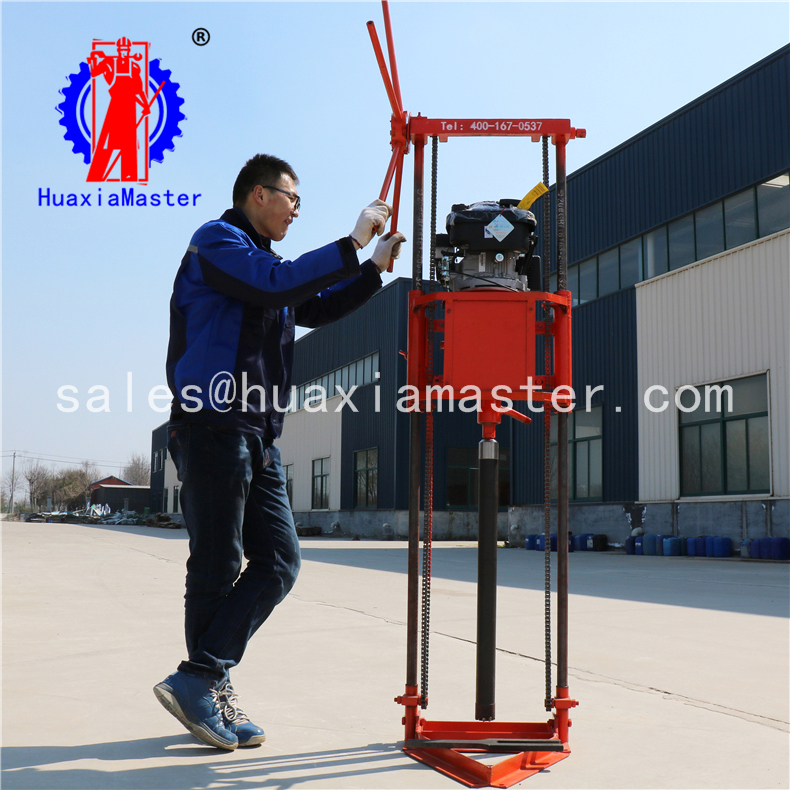

1.Brief introduction of QZ-2B gasoline engine sampling drilling rig
QZ-2B gasoline engine sampling drilling rig is produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.
QZ-2B gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2.Specifications of QZ-2B gasoline engine sampling drilling rig
|
QZ-2B gasoline engine sampling drilling rig
|
|
Bottom hole diameter (mm)
|
32-91
|
|
Drilling depth（m）
|
soil φ91：10-15m
stoneφ91：5-10m
stoneφ75：10-15m
stoneφ60：15-20m
stoneφ46：20-25m
|
|
Drilling pipe (mm)
|
28
|
|
Rotating speed（r/min）
|
200-570
|
|
Torque（n.m）
|
110
|
|
Gasoline engine
|
house power(hp）
|
5 (3.5kw)
|
|
displacement（cc）
|
196
|
|
Dimension（l*w*h）
|
600*450*1900
|
|
Weight（kg）
|
90
|
3.The configuration list of QZ-2B gasoline engine sampling drilling rig
|
Item
|
Parameter
|
Unit
|
Quantity
|
|
Gasoline engine sampling drilling rig
|
QZ-2B
|
set
|
1
|
|
Drilling pipe
|
28*1500
|
pc
|
6
|
|
Drilling pipe
|
28*800
|
pc
|
8
|
|
Pipe joint
|
35
|
pc
|
14
|
|
Reducing nipple
|
45/35
|
pc
|
1
|
|
Core barrel
|
45*800
|
pc
|
1
|
|
Alloy bit
|
46
|
pc
|
1
|
|
Reducing nipple
|
58/35
|
pc
|
1
|
|
Core barrel
|
58*800
|
pc
|
1
|
|
Alloy bit
|
60
|
pc
|
1
|
|
Three-wing bit
|
60
|
pc
|
1
|
|
Safety clamp
|
|
hold
|
1
|
|
Water seal
|
30*50*10
|
pc
|
4
|
|
Oil seal
|
30*50*10
|
|
|
|
Oil seal
|
17*50*10
|
|
|
|
Control wheel
|
|
pc
|
1
|
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
