The secondary steam continues raising and change into condensation liquid by the condenser.Then it falls back to the extraction tank as new solvent to be added to the medicine surface.The new solution crosses the medicine layer with high speed into the bottom of extraction tank.The dissoluble effective elements in the medicine can solve in the solvent inside the extraction tank. The extraction liquid will be pump into the concentrator by extraction & filter pipe.Secondary steam produced from that will be sent to the extraction tank as new solvent and heat source.The extraction of new solvent with large circumfluence can keep the solvent density of the medicine and solution at high-gradient.The solute inside the medicine will be separated out with great speed compelely(the extraction liquid is colorless).Then,the extraction liquid stops entering into the concentrator.And concentrated secondary steam goes into the cooler.The concentration will continue until the required proportion(1.2-1.34) of the medicine cream is available.The colorless liquid in the extration tank will be stored inside the storage tank for next time of use.The medicine residue will be drained out from the slag outlet.If extraction with organic solvent,please add proper water first and open the steam valve. After the the recycle,medicine residue will be drained out.
Equipment features:
1.The rate for cream collection is 10-15%higher than that of the multi-function tank,and the effective elements in the cream is one time higher than the normal one.Because the hot solvent is added into the drug surface continuously and then they pass the drug layer from up to down with high speed to solve the solute in the drug during the extraction,so the solute in the drug material and the solute in the solvent keep in high-gradient.If the solute in the durg material can be separated out with high speed until it separates out competely,then the extraction extent of the effective content is high.Because the concentration is finished inside the seal device with little loss and high transformation rate,so the rate for cream collection is high and the effective element inside the drug cream is high.
2.For the factors of high speed of separation out of solute,short time of extraction and the concentration is synchronized with extraction,the time from changing the drug material into the concentrated drug cream is only seven to eight hours,which has the advantage of high facility availability,
3.The equipment has the advantage of simple and small floor space and high equipment availability,so the cost is lower.
4.The extraction just needs to add the solvent one time,which is used cyclically in a set of seal equipment.The solvent in the drug residue can be reclaimed basically,which makes the solvent quantity is 30%less than that of the multiple function extraction tank and the solvent consumption is 50-70% less than that of the multiple function extraction tank.The above advantages make it available in extraction of organic solvent and purification of effective content in the China traditional medicine.
5.For the concentrated secondary steam serves as the heat source of extraction,the extraction liquid pump to the concentrator is at the same temperature level with that of the concentrator,which can save the vapor for more than50%and feature easy operation and reduces the operator.
Functions:
The device serves for vegtable and herbal medicine,china traditional drug,animal drug,food additional extraction with water,ethanol,carbinol and acet,which also can be used to reclaim and concentrate the organic solvent.

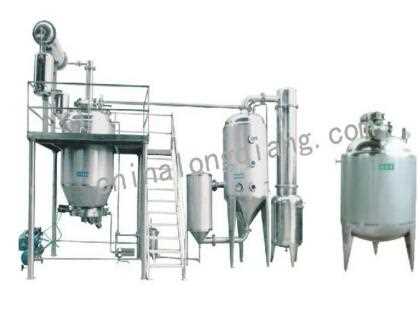

Working principle:
Put the drug material into the extraction tank and insert the solvent such as water,ethanol,carbinol and acet,etc(in accordance with the technology requirement)whose capacity is five to ten times the drug material.Open the steam valve to heat the extraction liquid until boiling that will last for about twenty to thirty minutes and then the extraction＆filter pipe pumps one third extraction liquid into the concentrator.And the steam valves are closed and the heater valve is opened to concentrate the material liquid.The secondary steam produced during concentration can enter into theextraction tank through the upward pipe at the evaporator to serve as the heat source and solution for extraction to maintain the boil inside the tank.
