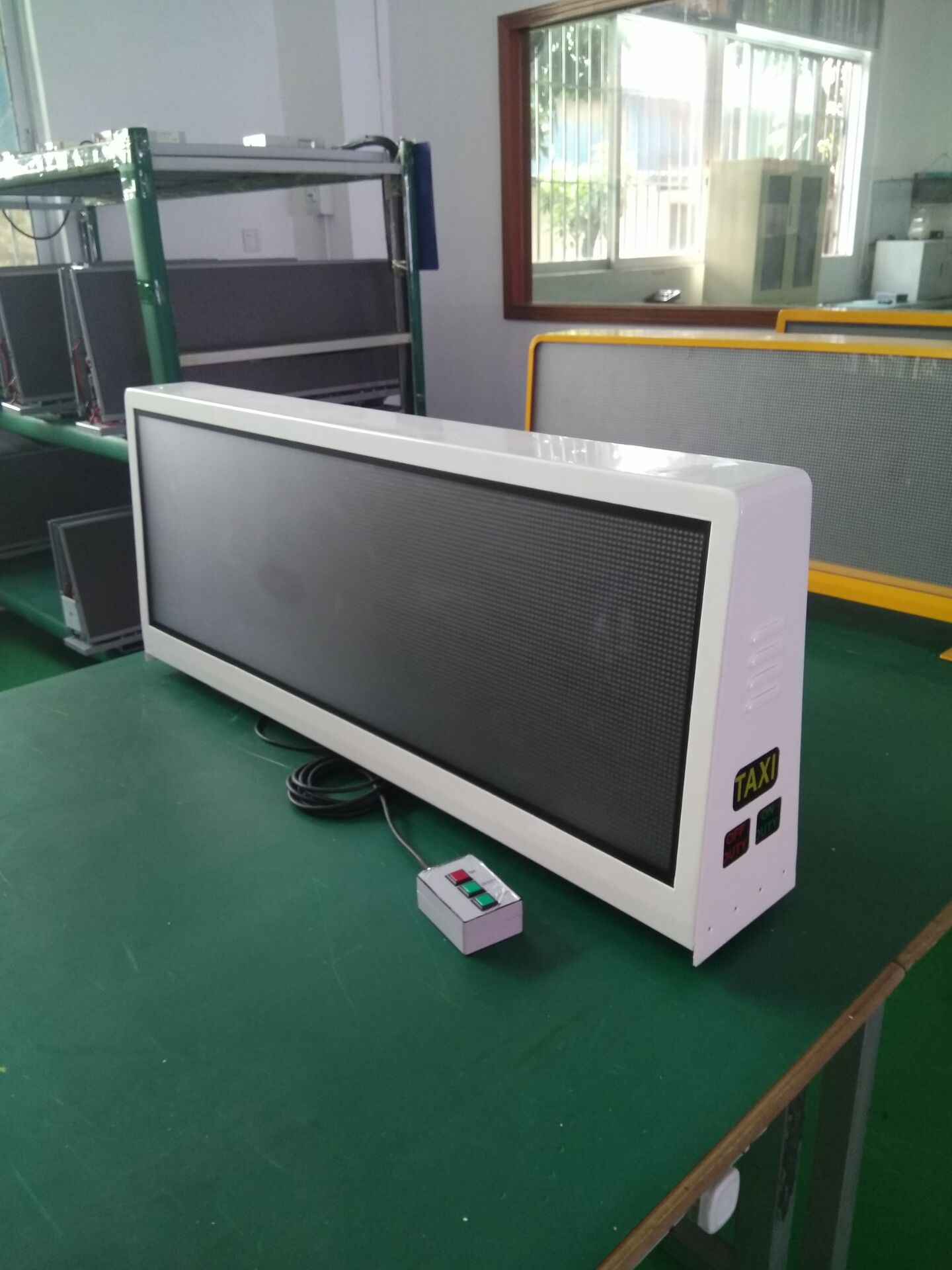

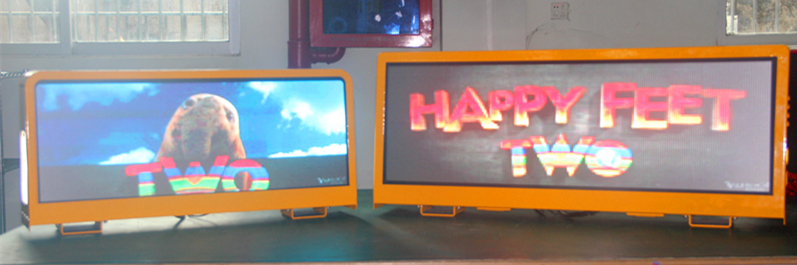

Taxi Top Display P5

FOB Reference Price / Min.Order Quantity

Processing Time:10 days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: shenzhen

Payment Terms: , ,

Product Details Company Profile

Product name:	P5	P2.5	P3
Model Type:	TS59632	TS3VF	TS3OT
Pixel Pitch	5mm	2.5 mm	3mm
LED Type	SMD 2727	SMD 2121	SMD2020
Pixel Density	40000 dot/ m2	160,000 dot/ m2	111,111 dots
Module Size	160*160mm	160*160mm	192*96mm
Screen Size	960mm*320mm	960mm*320mm	768*288mm
Screen Resolution	192*64 dot	384*128 dot	192*96mm
Frame Size	1100mm( L) x 410mm(H) XW:164mm(bottom)/ 99mm (top)	1100mm( L) x 410mm(H) XW:164mm(bottom)/ 99mm (top)	820mm( L) x 390mm(H) X W:170mm(bottom)/ 99mm (top)
Brightness	5500 nit	5000 nit	3500 nit
Contrast	8000:1	8000:1	8000:1
View Angle	150°(H)/150°(V)	150°(H)/150°(V)	150°(H)/150°(V)
Scan Mode	1/8 scan	1/16 scan	1/16 scan
Power Supply Input	DC9--24V	DC9--24V	DC9--24V
Max Consumption	450w	480w	250w
Average Consumption	150w	180w	80w
Refresh Rate(Hz):	Ordinary:.=85Hz	Ordinary:.=85Hz	Ordinary:.=85Hz
Refresh Rate(Hz):	1920Hz	1920Hz	1920Hz
Optimal Viewing Distance	3--50M	1--20M	3--50M
Life Span	100,000 Hours	100,000 Hours	100,000 Hours
MTBF	10,000 Hours	10,000 Hours	10,000 Hours
Control Method	Asychronous	Asychronous	Asychronous
Control Mode	3G/4G/WIFI/ Ethenet/ USB	3G/4G/WIFI/ Ethenet/ USB	3G/4G/WIFI/ Ethenet/ USB
Temperature Operating	.-40°～+75°	.-40°～+75°	.-40°～+75°
Working Humidity	10%–90%RH	10%–90%RH	10%–90%RH
Protection Rating:	IP65	IP65	IP65
Power Protection	over-temperature/over-current/	over-temperature/over-current/	over-temperature/over-current/
Power Protection	over-voltage protection	over-voltage protection	over-voltage protection
Screen Weight	23 kg	26 kg	15kg
Package Dimension	1100mm(L) X 500mm(H) X 270mm(W)	1100mm(L) X 500mm(H) X 270mm(W)	960mm(L) X 430mm(H) X 210mm(W)
Gross Weight:	30 kg	32 kg	19kg
Certificates	CE. ROHS	CE. ROHS	CE. ROHS
