Stage Barrier

FOB Reference Price / Min.Order Quantity

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Stage Barrier is Durable, Portable and Foldable

Stage barrier is a portable and foldable barrier for crowd control. The stage barrier is made of high quality steel and aluminum, it consists of front panel, foot board, front board and inner lock.

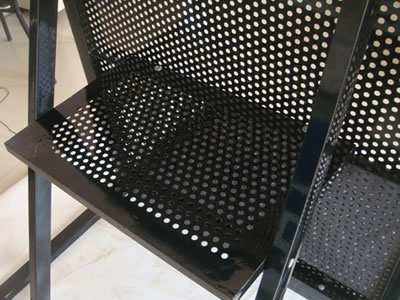

An aluminum stage barrier on the ground with perforated sheet front panel.

STB-1: Perforated metal sheet front panel of stage barrier.

A stage barrier on the roadside and its front panel is welded mesh type.

STB-2: welded mesh front panel of stage barrier.

A black powder coated stage barrier has a foot board at the back of the front panel.

STB-3: The stage barrier anti-slip foot board.

An aluminum stage barrier on the ground with extended front board supporting.

STB-4: Stage barrier extended front board.

Stage barrier gate can be used to provide a convenient entrance for staffs. Corner type stage barrier can be used at each corner with movable degree from 45-90-135.

An aluminum stage barrier gate on the ground and its door is opening.

STB-5: The stage barrier swing gate.

A corner type aluminum stage barrier on the concrete.

STB-6: Corner type aluminum stage barrier.

Advantage:
Compared with traditional barriers, the stage barrier has many typical advantages:

Lightweight, durable, corrosion resistance and maintenance free.
Folded stage barrier is easy to store and transport.
Easy to install and dismantle.
Equipped with a unique inner lock, which ensures effectively install with other barriers.
Smaller holes on front panel to prevent hurting people.
Extend foot board makes the barrier more stable.
Corner angle is adjustable to suit many occasions.
Ramp on front board to prevent tripping accident.
The degree of corner type stage barrier is available from 45 to 90 to 135 as your request.
Round edge and no sharp.
High quality, durable, corrosion resistance and aging resistance.

A folding stage barrier on the ground and an unfolded stage barrier next to it.

STB-7: Folded stage barrier will be more convenient to store and transport.

We can see the inner lock mechanism of the aluminum stage barrier.

STB-8: Stage barrier inner lock mechanism makes it easy to install.

Specifications:

Specifications of stage barrier
Material	Aluminum and steel
Surface	Mill finish (silver) , black powder coated, etc.
Size (H × W × D)	1.2 m × 1.0 m × 1.2 m, customer sizes are also available.
Folding size (H × W × D)	1210 mm × 1100 mm × 180 mm
Top semi-circle tube	40 mm, 50 mm, thickness: 2 mm, 3 mm.
Frame tube	25 mm × 50 mm, 40 mm × 50 mm, 40 mm × 60 mm, 60 mm × 60 mm, thickness: 1.5 mm.
Brace tube	50 mm × 25 mm, thickness: 3 mm.
Vertical tube	35 mm × 35 mm, thickness: 2 mm.
Foot board tube	25 mm × 50 mm, thickness: 3 mm.
Front panel	Thickness: 1.5-2 mm.
Front board	Thickness: 4 mm.
Panel holes diameter	8 mm
Weight	30 kg, 31 kg, 32 kg, 33 kg.
Packing	With cartons, pallet, air bubble film or as request.

Many folded stage barriers are packaged with the plastic film and they are standing on the floor.

STB-9: Stage barrier can be packaged with plastic film, cartons, etc.

Applications:
Stage barrier can be used as the barricade to control the crowd for some big events, such as concerts, outdoor or indoor performance, exhibitions and so on. Owing to its stable and portable, it can keep the audience at an appropriate distance from the stage and keep order.
