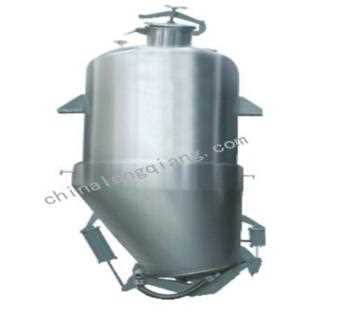

Sloping wimble exacting tanks Hit count 1348

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

The device is to service at such industries as China traditional drug, foodstuff and chemistry for the technologies such as normal pressure ,mini pressure, water decocting, warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic solvent with the feature of high efficiency and convenient operation. The CIP cleaning system inside the tank meets with the GMP standard

Complement equipment includes:

Defoamer, congenser,cooler, oil&water separator and medical liquid pump.

type specifications	TQ-Z-1.0	TQ-Z-2.0	TQ-Z-3.0	TQ-Z-6.0	TQ-Z-8.0	TQ-Z-10
Volume	1200L	2300L	3200L	6300L	8500L	11000L
Design pressure inner tank	0.09Mpa
Design pressure in the jacket	0.3M
Pressure of compressed air	0.6¬0.7Mpa
Diameter of feed inlet(MM)	400	400	400	500	500	500
Heating area(m²)	3.0	4.7	6.0	7.5	9.5	12
Condensing area(m²)	4	4	5	5	8	10
Cooling area(m²)	1	1	1	2	2	3
Filtering area(m²)	3	3	3	5	5	6
Diameter of outlet (mm)	800	800	800	1000	1000	1000
Energy consumption	245	325	345	645	7200	8500
Mixing speed rpm)	25
Type of the reduction gears	BLD2-4-59	BLD3-4-59	BLD4-4-59	BLD7.5-5-59	BLD7.5-5-59	BLD11-5-59
Motor power(k w)	2	3	4	5.5	7.5	7.5
Weight of the equipment(kg)	1800	2050	2400	3025	4030	6500
