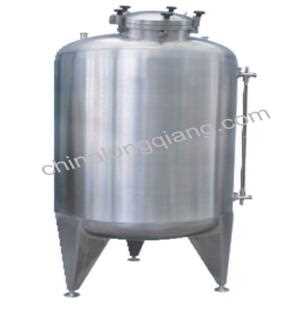

Single-layer storage tank Hit count 898

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

This series of vertical and horizonatal storage tanks are designed, made and inspected according to GMP Good Manufacturing Practice and “Technical conditions of the steel-made pressure container”.(GB150-1998)

1、 The inereface adopts intematioally general-use stan-dard ISO standard rapid installation chuck type, and the material is imported 316L or 304. The mirror polishing of intemal surface Ra≤0.28цm, and extemal surface adopts semiluster polishing or mirror polishing treatment.

2、 In the nozzles, there are liquid meters (Capacitive type, surpersonio wave type or glass type), respiator, thermometer(digital display or indicator dial type). CIP cleaning mouth, viewing glass, explosive viewing lamp, SIP sterilization mouth, liquid outlet and inlet, manhole.

3、 All the sizes are according to the customers’ requirements.

Nominal capacity(L)	Pressure in jacket(MPa)	Working temperature(℃)	L （mm）	L1（mm）	D（mm）	D1（mm）	H（mm）
1000L	0.25	143	1950	1500	1050	900	300
2000L	0.25	143	2300	1800	1400	1200	300
3000L	0.25	143	2600	2000	1600	1400	300
5000L	0.25	143	3250	2500	1800	1600	300
8000L	0.25	143	4300	3500	1900	1700	300
10000L	0.25	143	4700	3800	2100	1900	350
20000L	0.25	143	5650	4500	2600	2400	350
30000L	0.25	143	6250	4800	3000	2800	350
