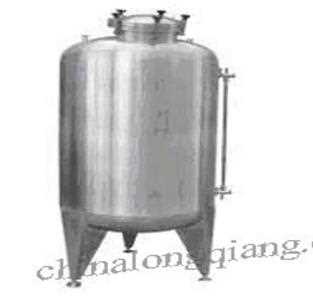

Single Layer Stainless Steel Storage Tank Hit count 960

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Description:

This series of vertical and horizonatal storage tanks are designed, made and inspected according to GMP Good Manufacturing Practice and Technical conditions of the steel-made pressure container.(GB150-1998)

1.The inereface adopts intematioally general-use stan-dard ISO standard rapid installation chuck type, and the material is imported 316L or 304. The mirror polishing of intemal surface Ra≤0.28цm, and extemal surface adopts semiluster polishing or mirror polishing treatment.

2. In the nozzles, there are liquid meters (Capacitive type, surpersonio wave type or glass type), respiator, thermometer(digital display or indicator dial type). CIP cleaning mouth, viewing glass, explosive viewing lamp, SIP sterilization mouth, liquid outlet and inlet, manhole.

3. All the sizes are according to the customers'requirements.

Technical parameters:

Nominal volume	H(mm)	H1(mm)	D（mm）	H（mm）
600L	2000	1000	Φ900	350
1000L	2300	1200	Φ1100	350
2000L	2700	1500	Φ1300	350
3000L	3050	1700	Φ1500	300
5000L	3500	2000	Φ1800	350
10000L	4200	2500	Φ2300	400
20000L	5000	3000	Φ2800	400
30000L	5700	3500	Φ3200	400
