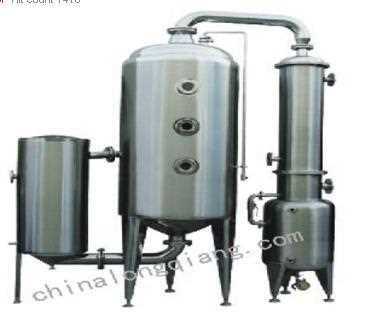

Single Effect Evaporator Hit count 1410

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Description:

The device is to concentrate the material in the occasions such as China traditional drug, west drug, dextrose,amylum sugar,oral liquid,chemistry,foodstuff,monosodium glutamate and milk product and to reclaim the industrial organic solvernt such as alcohol. It is suitable to concentrate and vacuum with little batch number and multiple varitties.

Feature:

1. Alcohol reclamation:

Large reclamation capacity and the vacuum concentration procedure make it's production capacity five to ten times of that of the old counterpart and lower the energy consumption for 30% ,featuring little investment and high reclamation profit.

2.Cocentrated liquid material:

The device uses the modes of outer-heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportionof 1.3; The liquid material concentrates without bubble under full seal state ,The drug liquid after concentration by the device features non-contamination and thick drug taste and easy cleaning(it is just to open the up and down cover for cleaning).The device is easy to handle and it needs a little foundation area for installation, The heater and evaporator use stainless steelfor thermal purpose.The polyurethane is used as the thermal material,The surface is treated with sand grinding and surface polishing,meeting with the GMP standard.

Technical parameters:

type Parameters	WZ-500	WZ-1000	WZ-1500	WZ-2000
Evaporation capacity （Kg/h)	500	1000	1500	2000
Vapor pressure (Mpa)	<0.25
Vacuum（Mpa）	<0.08
Concentrate proportion	1.2-1.3
External dimensions (L×W×H)	2X1X3	2.2X1.2X3.3	2.5X1.3X3.5	4.6X2.35X5.1
