Product Introduction

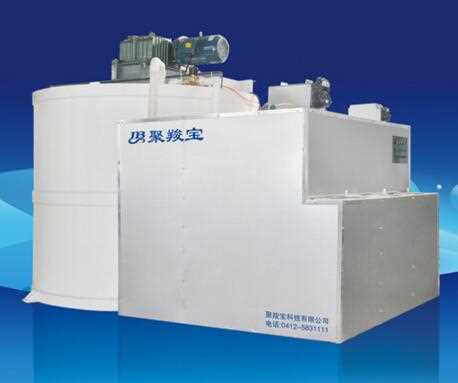

GDPC-4 is the first generation of PCE production module present by JSB technology Co., Ltd. Design for PCE mother liquid plant and compound plant. The equipment has compact structure, easy to move and using, safe and reliable, with separate metering system, mixing system, feeding system, controlling system and titration system. Stirring effect is good while production efficiency is high, easy to maintain, it is a very practical PCE mother liquid production equipment.

Technical Parameter

Model		GDPC-4
Productivity (ton/lot)		4
Capacity(L/4 hour)		4000
Main Reaction Tank	Max Weighing Volume（L）	4300
	Max Weighing Capacity（kg）	8000
	Weighing Precision	±2%
Neutralization Reaction Tank	Max Volume（L）	250
	QTY	1
Overall Dimension(DWH)（mm）		3300×2000×2200
Total Installed Power （kw）		20
Equipment Weight (kg)		1500

Features:

1. Lower feeding inlet: no need for high-platform, and operating on the ground ,reducing working intensity

2. Small space occupation: covers an area of only 7 m2, 2.7 m height, reducing the height requirements of plant

3. In-built high precision sensor: the module equipped with load cells at the bottom of platform, materials are measured separately, accurate and fast feeding will be achieved.

4. Equipped with reducer: mixing system select with worm horizontal reducer, advanced structure, smooth operation, 316L stainless steel thicker mixing paddle bring efficiency and low noise.

5. Easy moving: the whole weight is only 1.5 tons, can be carried by a forklift easily, no need for additional installation, and production is available as soon as placing equipment.

6. Advanced titration equipment: the module equipped with peristaltic pump which widely used in the pharmaceutical industry, with stable and accurate trait

7. Short synthetic process time: 5 tons of PCE mother liquid just need 4 hours, and can be continuously produced.

8. Process is environment-friendly: little noise and no pollution.

9. Easy to learn: simple operation, just one person can complete production independently, significant savings in labor costs.

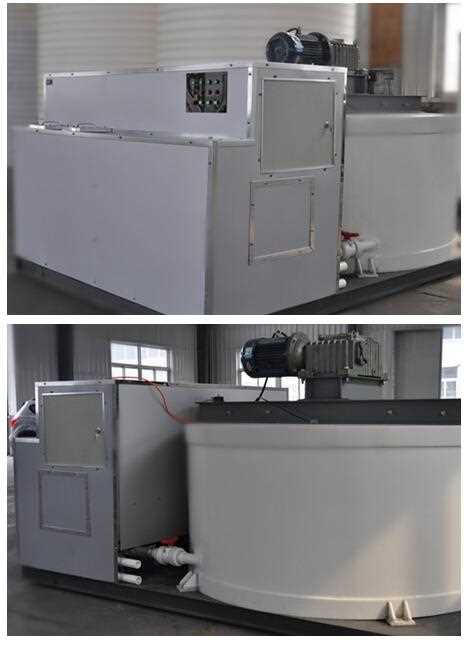

In-built high precision sensor: the module equipped with load cells at the bottom of platform, materials are measured separately, accurate and fast feeding will be achieved.
