Product Description

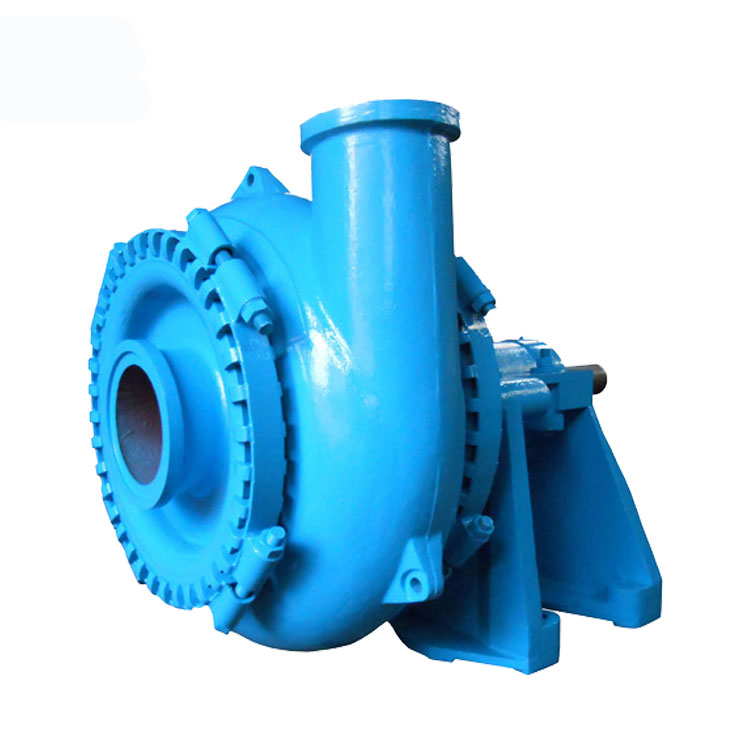

TNG Series Introduction:
TNG series is single casing horizontal slurry pump and also named as gravel pump, sand pump and
dredging pump, which is designed specifically for continuous pumping of extremely aggressive slurries,
with a wide particle size distribution. Capable of handling large particles at consistently high efficiency results in low cost of ownership.
The large volume internal profile of the casing reduces associated velocities further increasing component life.
Application:
Gravel sand pumps are widely used in dredging, mining, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites.
For different duties, pump may be named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump,
Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump
Features:
1.Single casing, cantilevered, horizontal pump
2.Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, and high 3.efficiency,
Specification:
D: 100-400mm
Q:36-5040m3/h
H:5-80m
Technical Parameters
|
CG(H) Series Gravel Pump Performance Chart
|
|
|
|
|
Pump
Model
|
Allowable
Max.
Power
|
Clear Water Performance
|
|
|
|
Capacity Q
|
Head
H(m)
|
Speed
n(r/min)
|
Max.Eff.
η%
|
NPSH
(m)
|
Impeller
Dia.
|
|
|
m3/h
|
l/s
|
|
|
65TNG
|
60
|
36-250
|
10-70
|
5-52
|
600-1400
|
58
|
2.5-3.5
|
378
|
|
|
80TNG
|
120
|
126-576
|
35-160
|
6-45
|
800-1400
|
60
|
3-4.5
|
378
|
|
|
100TNG
|
560
|
216-936
|
60-260
|
8-52
|
500-1000
|
65
|
3-7.5
|
533
|
|
|
100TNG
|
560
|
180-1440
|
50-400
|
24-80
|
500-950
|
72
|
2.5-5
|
711
|
|
|
150TNG
|
600
|
360-1440
|
100-400
|
10-60
|
400-850
|
65
|
1.5-4.5
|
667
|
|
|
150TNG
|
600
|
288-2808
|
80-780
|
16-80
|
350-700
|
73
|
2-10
|
950
|
|
|
200TNG
|
600
|
576-3024
|
160-840
|
8-70
|
300-700
|
68
|
2-8
|
864
|
|
|
250TNG
|
600
|
720-3600
|
200-1000
|
18-44
|
300-500
|
70
|
3-9
|
1016
|
|
|
300TNG
|
1200
|
324-3600
|
90-1000
|
26-70
|
300-500
|
72
|
3-6
|
1270
|
|
|
300TNG
|
1200
|
720-4320
|
200-1200
|
12-48
|
250-500
|
72
|
3-6
|
1067
|
|
