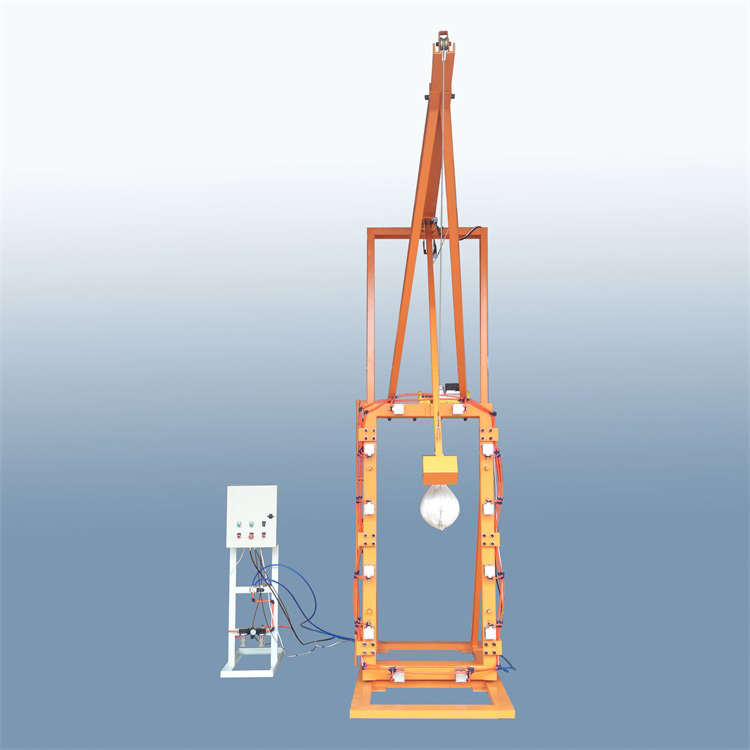

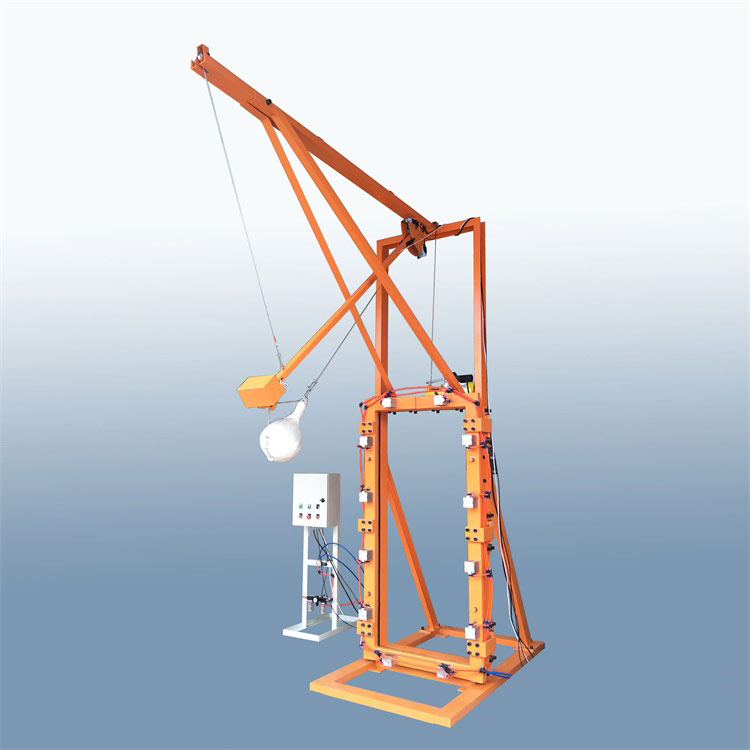

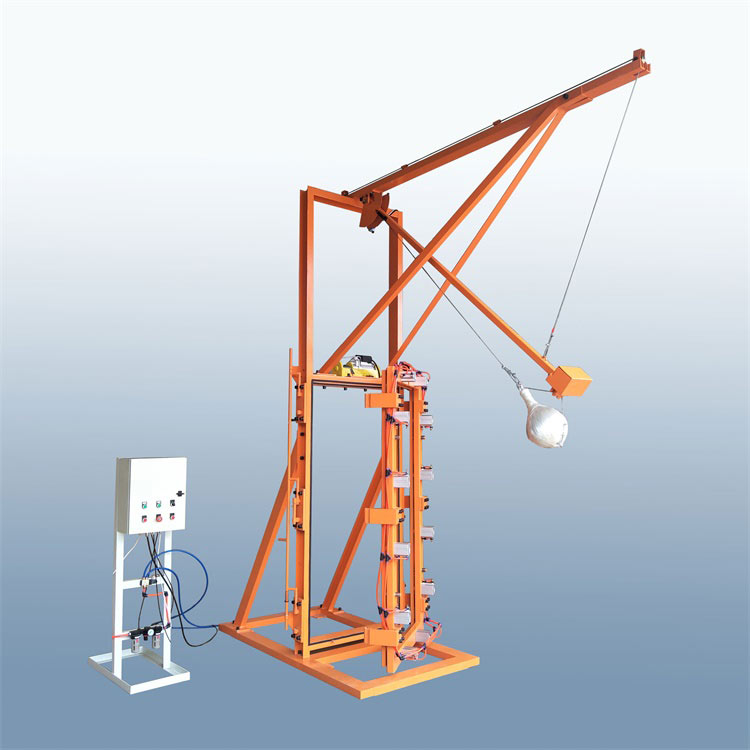

Shot Bag Impact Testing Equipment
Safety Glass Impact Testing Equipment
45kg/46kg shot bag and 50kg Pneumatic Tyres Impactor.
Processed in accordance with ANSI Z91.1, ISO 3537, BS EN 12600 and AS NZS 2208.
Related Standards:
AS/NZS 2208 Safety glazing materials in buildings – Appendix
D: Impact Test GB 15763.3 Safety glazing materials in building
Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test Application: Determining the resistance of glazing materials to impact by the penetration method.
Test Frame:
Frame Size: 1900mm*1500mm*3570mm
Samples Size: 1930mm*864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm Rubber Pad
Thickness: 3mm Rubber Pad
Hardness: Shore A50
Impact Shot Bag:
Reinforced leather bag filled with chiller lead shot.
Technical Data:
Weight: 45kg±0.1kg 46kg±0.1kg
Height: 330mm ± 13mm
Max diameter: 250mm
Leather thickness: 1.5mm
Lead sand size: 2.5mm
Customized: 25kg /48kg
