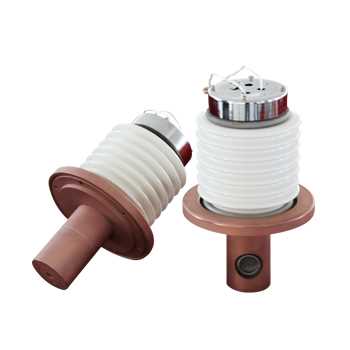

Specifications of YUSHI STG Corrugated Ceramic X Ray Tube   Model Test Condition STG-2505G STG-3005G STG-3505G STG-2505H STG-3005H STG-3505H STG-2505HZ STG-3005HZ STG-3505HZ Rated Tube Voltage Positive Pulse 250KV 300KV 350KV Rated Tube Current 5mA Peak Inverse Voltage Negative Pulse 150KVP Max. Filament Current Valid Value 4.0 A Focus Size Pinhole Imaging Method 2.0×2.0 2.5×2.5 2.5×3.0 1.0×1.9 1.0×2.4 1.5×3.0 1.0×2.0 1.0×2.5 1.5×3.0 X - Ray Radiation Angle Directional 40° Panoramic Flat Target 25°× 360° Panoramic Cone Target 40°× 360° Dimension Directional φ132×193 φ132×203 φ132×213 Panoramic Flat Target φ132×203 φ132×213 φ132×223 Panoramic Cone Target φ132×203 φ132×213 φ132×223 X Ray Window Size Directional φ18 Panoramic Flat Target 12 Panoramic Cone Target 14 Weight Directional 3.6 3.8 4.0 Panoramic Flat Target 3.5 3.7 3.9 Panoramic Cone Target 3.5 3.7 3.8 Sealing Groove Size φ126×120×2.5 Mounting Hole Center φ110 6-M5 General Distribution Target Material Tungsten Anode Diameter φ46 Insulation SF6 Gas (0.35 - 0.6 Mpa) Cooling Radiator forced air cooling Service Life ≥ 500 hours
