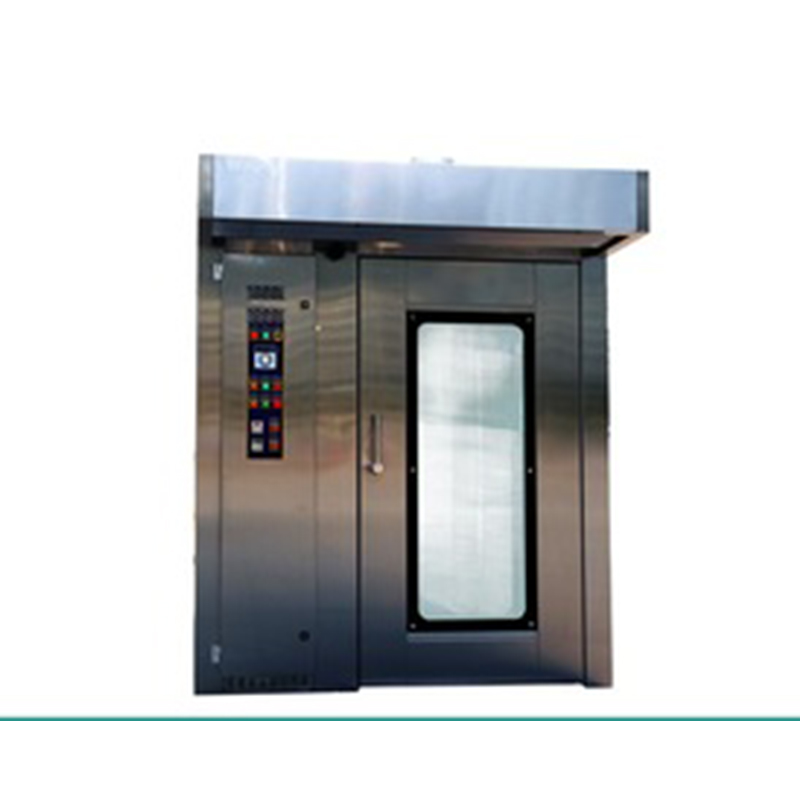

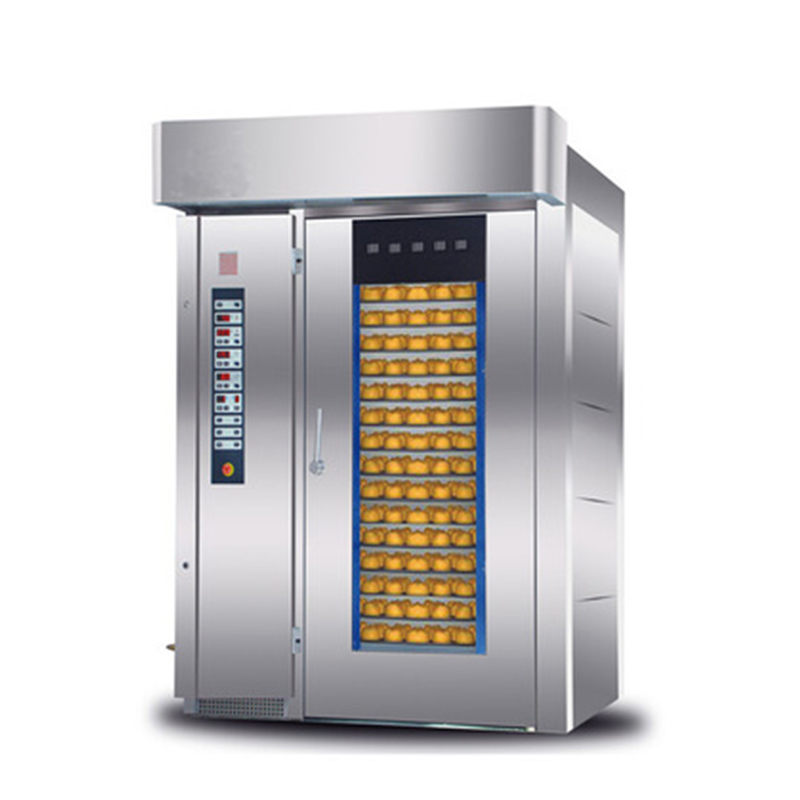

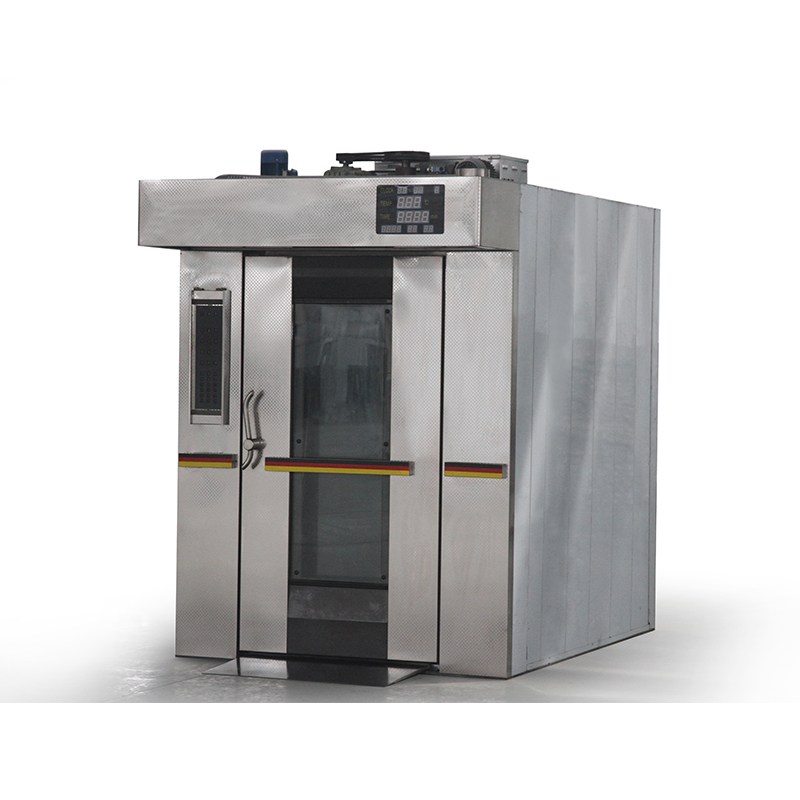

Rotary oven

Introduction:
Our rotary oven boast assure large baking area with minimum surface requirement. And also with a steam system which provides high volume, shine, texture and crust in the market. It is industrial & commercial baking oven.
The energy required in the baking process is fine tuned by an energy saving heating element, a well balanced blower with precision nozzle which distributes the exact amount of heat necessary into the baking chamber.

Features:
1. Even Baking.
2. Minimum baking time.
3. Programmable timers with digital display to control baking time.
4. Low Energy & Fuel Consumption.
5. Automatic heat & time setting.
6. Apply to bake all kinds of bread, cake, cookie, biscuit and pasties.
7. The burner imported from Japan with low oil consumption and low exhaust emission.
8. The inside and outside of the oven is stainless steel.
9. The diesel consumption is about 3.2L/hour for diesel type. The electric consumption is 36 for electric type. The gas type needs 3.5L per hour.

10. Baking temperature is set and heating begins. When temperature reaches the set value, heat preservation will continue for 10 to 15 minutes to make temperature between the inside and outside of the stove balanced.

11. It is used for industrial & commercial cake oven and other breads oven.



Rotary oven:
1. RIELLO burner to resist 1200℃.
2. 7 inch LCD screen for the baker to check the rest time easily.
3. Steam system can change 8 kilogram water into steam within 20 seconds.
4. Position device on top to keep the trolley facing to the door after stopping.
5. 360°circling hot air to keep equal and optimal fire.
6. Air exhauster and fume collecting hood on top which is environmental protected.
Specification:

Model	Applicable baking tray size（mm)	Baking area（㎡）	Maximum yield (According to bread/kg)	Power(kw)	Dimensions（mm）	Weight（kg)
R4060D	400*600  16-18 trays	4.3	50	Diesel 1.6	1650x1280x2300	650
R4060E				Electric 37.5	1650x1280x2300
R4060G				Gas1.6	1650x1280x2300
R6080D	600*800  16-18 trays       400*600  32-36 trays	5.7-8.6	120	Diesel 1.6	2000x1550x2300	1100
R6080E				Electric 46.5	2000x1550x2300
R6080G				Gas 1.6	2000x1550x2300
R80100D	800*1000 16-18trays       450-750-2trollry  32-36 trays460*760-2trollry  32-36trays	9.7-14.5	195	Diesel 2.5	2300X1850x2370	1400
R80100E				Electric 78	2300X1850x2370
R80100G				Gas 2.5	2300X1850x2370
R80120D	800*1200 16-18trays    600*750-2trollry  32-36trays400*600-2trollry  64-72trays	12.8-17.2	240	Diesel 4.7	2450x1970x2500	1800
R80120E				Electric 117	2450x1970x2500
R80120G				Gas 4.7	2450x1970x2500
