Rockfall Barriers – Hot-Dipped, Galfan & PVC Coated Hexagonal Wire Mesh

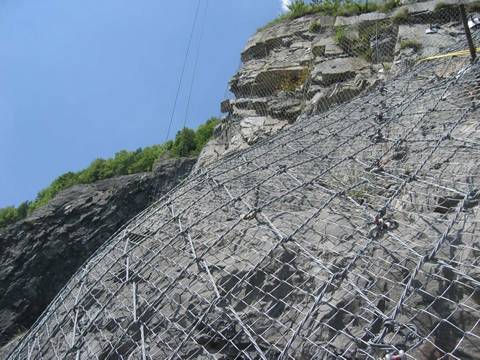

RB-01: Rock barriers for rock slope protection.
Rockfall barrier is a rockfall protection system which is used to prevent rocks falling down the road to protect pedestrians and vehicles from danger. This rockfall barrier system contains 4 types:
- Hexagonal wire mesh.
- tecco mesh.
- spider spiral rope mesh.
- wire rope nets.
Hexagonal wire mesh is made of hot-dipped, PVC coated or galfan steel wires. The wires are double twisted and the edge of the mesh is reinforced by a thicker wire – selvedge wire. It can be used individually or combined with other meshes as active rockfall barrier. Fastened by anchors, bolts and steel cables, hexagonal wire mesh is strong and firm enough to block the rocks or debris and minimize the damage of natural disasters.
RB-02: Tecco mesh used to prevent rocks falling.
RB-03: Spider spiral rope mesh for rock protection.
RB-04: Wire rope net used for rock protection.
Features
- High tensile strength. Hexagonal wire mesh is double twisted structure which makes it can withstand the impulsive force of falling rocks and without unraveling in the event of wire breakage.
- Corrosion and rust resistance. Heavy zinc coating supplies excellent and long term corrosion and rust resistance. Additional, the PVC coating makes the hexagonal wire mesh be used in more aggressive environments and longer service life.
- High durability & stability. Boundary rope and wire rope anchors can enclose the hexagonal wire mesh onto top and foot of mountains for durability and stability.
- Improve firmness. We use prestressed anchors to fasten the hexagonal wire mesh firmly onto mountains, even onto the uneven mountain surface to improve firmness.
RB-05: Slope protection with prestressed anchor to improve firmness.

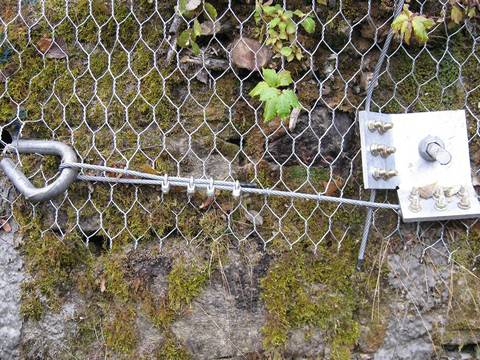

RB-06: Rock barrier is connected by sewing rope and clips for full use and anti-breakage.
RB-07: Rock barrier with boundary rope to fix wire meshes onto mountain top and foot
RB-08: Rock barrier anchored by rope anchor for stability and durability.
Specification
- Material: hot-dipped, galfan and PVC coated steel wire.
- Wire diameter: 2.7 mm, 3.0 mm.
- Mesh size: 60 mm × 80 mm, 80 mm × 100 mm.
- Zinc coating weight: ≥ 260 g/m2.
- Mesh roll width: 0.8/1.0/1.2/1.5 m, etc.
- Mesh roll length: 50 m, 100 m.
- Packaging: the hexagonal wire mesh can be packed in bulk or be packed into pallet. (bulk package is economical and pallet package can supply better protection.
Typical application
The rock barriers are mainly used in:
- Roadside.
- Tunnel construction.
- Soil slope protection.
- Private areas.
- Highway construction.
- Coastal protection.
RB-09: Road side.
RB-10: Soil slope protection.
RB-11: Coastal protection.
RB-12: Highway construction.
