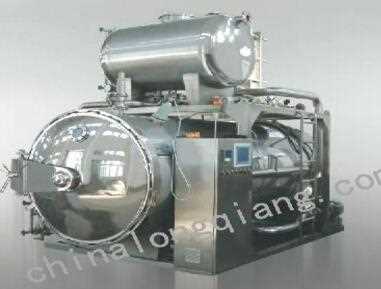

Retort sterilizer Hit count 3011

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

This equipment is suitable for the pharmacy, chemical and biology areas. It can be processed in non-polluted state. It is equipped with air respirator, cleaning ball, sanitary inlet viewing mirror and viewing lamp. Heat preservation is polyurethane blister or pearl cotton. External layer adopts sand-grinding polishing treatment

Technical parameters

Items	Units	specification
Diameter of the pot body	mm	1300	1500	500/800
Number of baskets		4	4	1/2
Maximum working pressure	Mpa	0.35	0.35	0.35
Maximum working temperature	℃	137	137	137
Steam pressure	Mpa	0.6	0.6	0.6
Steam consumption	Kg/cycle	300	350	Electrothermal/steam
Cooling water pressure	Mpa	0.3	0.3	/
Consumption of cooling water	m3/cycle	5～10	8～12	/
Compressed air consumption	m3/min	0.6～1.0	0.8～1.2	/
Electrical capacity	KW	15	20	30/5
Dimension	L×W×H(mm)	5600×2000×3700	5600×2200×4100
