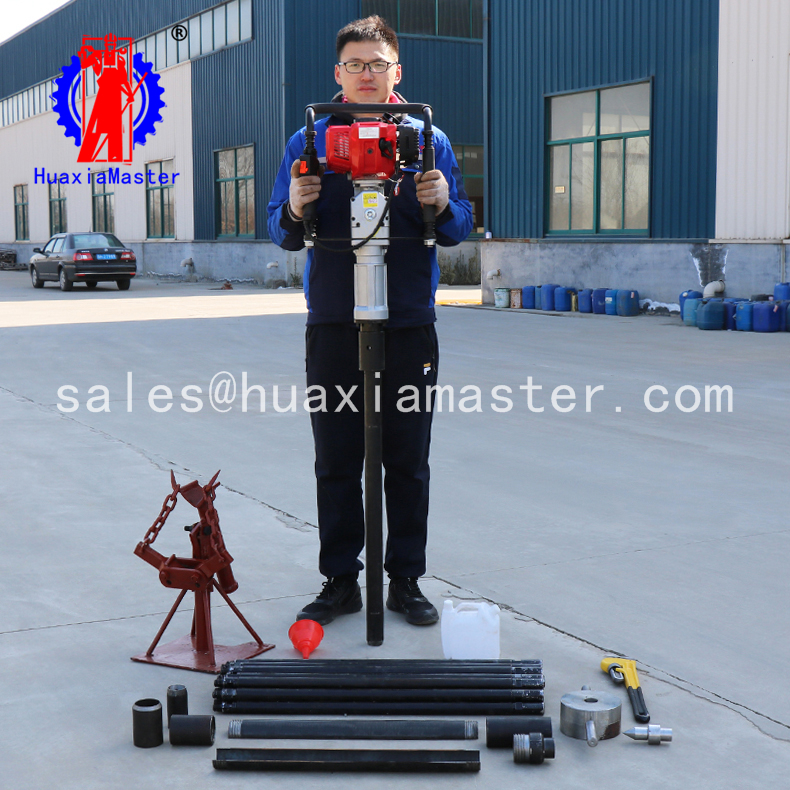

QTZ-2 Soil Sampling Drilling Rig portable soil testing drilling rig

FOB Reference Price / Min.Order Quantity

USD 1200.00-1500.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:within 6 days

Packaging Details: wooden packaging

Port: qingdao

Payment Terms: ,

Product Details Company Profile

The brief introduction of QTZ-2 soil sampling drilling rig

QTZ-2 soil sampling drilling rig is a upgraded product of the QTZ-1 soil sampling drilling rig.The rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10-15 meters.

2. The applications of QTZ-2 soil sampling drilling rig

Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
Groundwater survey; coastal geological survey; wetland environment investigation.
Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.

3.The technical parameters of QTZ-2 soil sampling drilling rig

QTZ-2 soil sampling drilling rig
Power	power	3.3HP
	lighter way	backflush pull rope
	oil consumption	0.55 l/h
Impact times		1650r/min
Impact energy		35J-65J
Core depth		10m-15m
Host weight		25kg

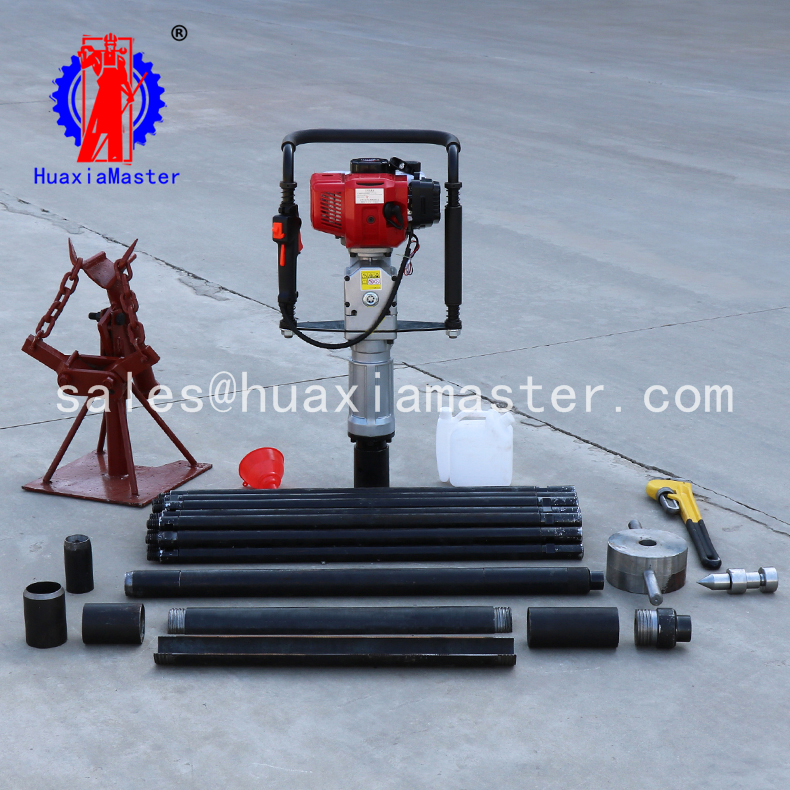

4.The configurations list of QTZ-2 soil sampling drilling rig

Item	Parameter	Platform	Quantity
Soil sampling drilling rig	QTZ-2	set	1
Side buckle impact take over	32*150	pc	1
Tapered tap	32*80	pc	13
Drill pipe	32*700	pc	13
Taper tap	32*100	pc	13
Reducing nipple	32*50	pc	1
Collar	50*150	pc	1
Open tube	50*600	pc	1
Double-edged pipe boots	50*100	pc	2
Reducing nipple	32*70	pc	1
Collar	70*150	pc	1
Open tube	70*600	pc	1
Inner edge pipe boots	70*100	pc	1
Outer edge pipe boots	70*100	pc	1
Portable sounding hammer	10kg	pc	1
Sounding the reducing nipple	32	pc	1
Double sided hand	32	pc	1
Touch probe	32	pc	1
Puller	three force arm	set	1
The ratio of oil	25:1	pc	1
Oil funnel		pc	1
Pipe wrench	80mm	hold	1
Special internal six party	multi-function		1
Wrench	24/27		1
Internal six party	#6		1
Six prismatic wrench			1
Spark plug wrench			1
Screw driver			1
Spare spark plug			1
