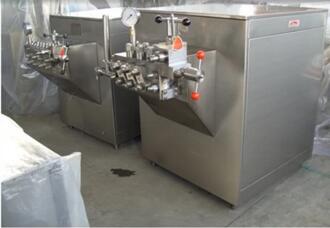

Professional Milk Homogenizer Supplier

FOB Reference Price / Min.Order Quantity

USD 1800.00-13500.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:15 calendar days

Packaging Details: Standard export wooden case

Port: Shanghai

Payment Terms: L/C , T/T , other

Product Details Company Profile

Homogenization is the mechanical process where raw materials are put under high pressure and broken down into smaller particles. This equipment can be used widely in production, research and technical development of food, milk extract, drink, pharmacy, fine chemical, biotechnology and other fields.

Many kinds of material such as milk or bean milk can be homogenized under high pressure to considerably thin the fat balls in the milk liquid, which makes the products be easy to be digested and absorbed, and improve the edibleness.

This equipment can be used in the production of ice cream to improve the thinness and fraction void of liquid material.

Main Characteristics:

1- Lubricate system
Lubricate system which is both squirting and splash uses soft plastic pipes that can bear high pressure and oil. The oil can keep stable temperature at the same producing condition, so it brings excellent lubricate effect. The recycle cooling system reduces driving box's temperature and lubrication waste.

2- Driving box
The eccentric shaft is made of special alloy steel which is wear-resisting and has long using life. The half construction is easy to maintain and be knocked down. Driving and eccentric shafts are drive by v-model gears which have following advantage: low noise and good stability.

3- Wear parts
Homogenizing valve, one-way valve and piston are made of special alloy steel, with high impact resisting corrosion-resisting. This material is applicable to any CIP's corrosion-resisting. In special condition homogenizing and oneway valves can be made of alloy steel which has same function. All kinds of sealing material have following advantage: wear-resisting, non-toxic, pressure-resisting and long life. It is easy and convenient to change wearing parts, especially it is no need to take off pump during changing pistons and sealing rings.

4- Pump construction
The square high pressure covers on the pump have high intensity and excellent sealing function. The tighten nuts with lids have nice out looking. The material gate is according to food sanitation and pharmacy standards. Out-in parts take adjustable tie-in which is easy and convenient to be taken off and fixed.

5- Type
Our homogenizes are vertical(for low capacity) and horizontal(for big capacity construction which advantage is good stability and easy to operate, maintain and repair.

6- Saving energy
Our homogenizers arebased on low energy waste and high efficiency designing, which has clear effect at the same producing condition.

APPLICATION
Food and Drink	Juice ,Condiments, Peanut oil, Protein powder, etc.
Dairy : Milk	Milk, ice cream, yogurt, cheese, butter, etc.
Pharmaceutical	Antibiotics,Intra lipid, Antacids, etc.
Chemical	Lubricants, disinfectants, paints, dyes, etc.
Other	Cell disruption, yeast, cosmetics.
