Pre applied HDPE fully bonded waterproof membrane(sand finish)

FOB Reference Price / Min.Order Quantity

USD 4.00-4.50 / Square Meter/Square Meters | 1000.00 Square Meter/Square Meters (Min. Order)

Processing Time:10-15 days

Packaging Details: Pallet

Port: Dalian

Payment Terms: , ,

Product Details Company Profile

Pre applied HDPE fully bonded waterproof membrane(sand finish)

Description

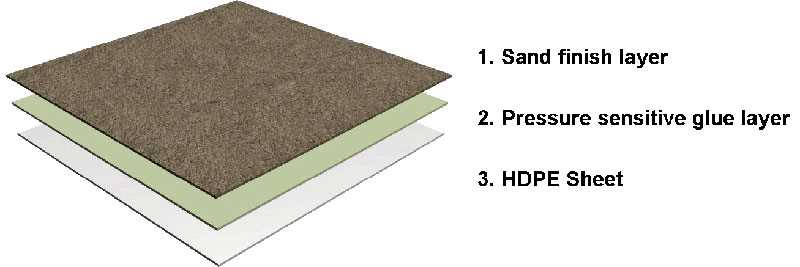

Membrane consists of multi-layer composite waterproofing material for superior waterproofing performance, including a layer of thick HDPE film, self-adhesive polymer layer and a unique particulate layer.

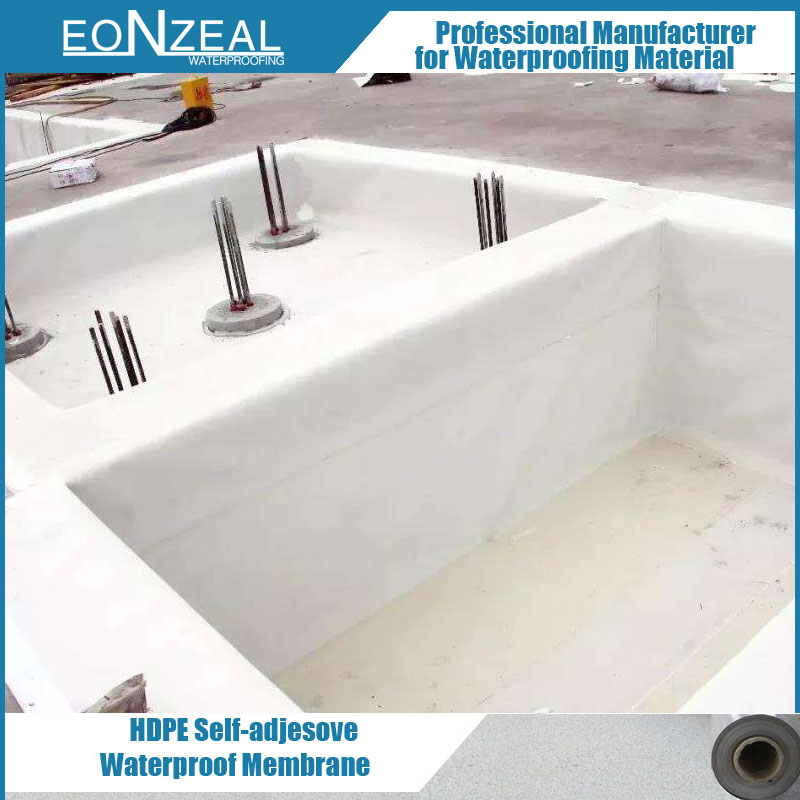

It can be installed on uniform and regular concrete blinding, compacted sand-stone cushion for waterproofing of below ground surfaces and is also used for waterproofing of confined surfaces or blind side waterproofing. Product is designed to bond fully and permanently with poured concrete against it after placing and lying reinforcement.

Features

1. Forms permanent bond to concrete poured against it, preventing water from seeping into the gap between waterproofing membrane and the structure
2. Not affected by the displacement of the basal layer/ ground settlement beneath slabs
3. Membrane is self-protecting. It can be trafficked immediately after application and does not require the use of protective layer
4. Simple and quick to install, requiring no priming or fillets
5. Unaffected by wet conditions
6. Fully-adhered watertight laps and detailing
7. Excellent bonding even under long-term water immersion
8.Membrane can be applied at -4ºC and above

Sand layer makes it possible to construct and work on membrane after applied without protective layer

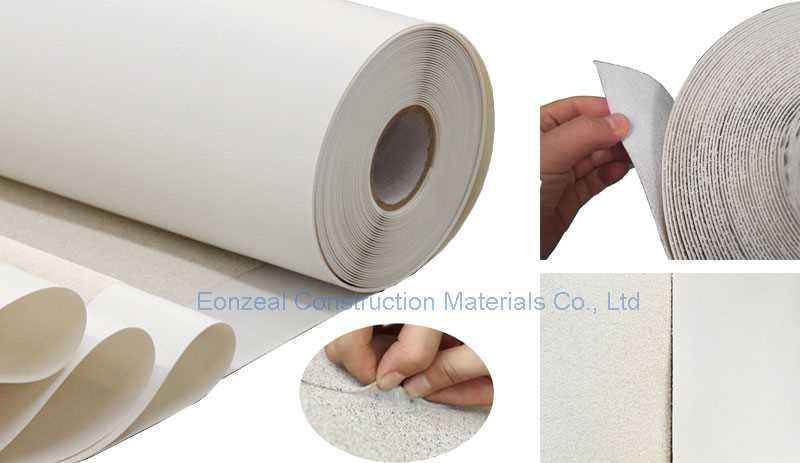

Product detail

Application
1. Waterproofing below ground concrete structures
2. Protection of concrete foundations against aggressive ground contaminants
3.Prevents methane leakage in underground layers
4. Post-applied(without sand) waterproofing system for walls and tunnels projects.

Technical Data

No.	Test Item	Test Method	Result		Conclusion
1	Peel Strength	ASTM D903-98(2017)	0.201kgf/mm		Pass
2	Puncture Resistance	ASTM E154/E154M-08a(2013) Section 10	995N		Pass
3	Tear Strength	ASTM D624-00(2012)	Transverse	77.1kN/m	Pass
			Lengthways	77.6kN/m
4	Tensile Strength	ASTM D882-12	Transverse	24.5Mpa	Pass
			Lengthways	24.7Mpa
	Elongation at break		Transverse	940%	Pass
			Lengthways	930%
5	Tensile Strength	ASTM D412-16 Method A	Transverse	25.6Mpa	Pass
			Lengthways	26.2Mpa
	Elongation at break		Transverse	860%
			Lengthways	800%
6	T-Peel Strength	With reference to ASTM D1876-08(2015) and client's requirement	0.541 N/mm		Pass
7	Water Absorption	ASTM D570-98(2010)	0.29%		Pass
8	Low Temperature Flexibility	ASTM D1790/D1790M-15 Section 7.6	No affection		Pass

Specification

Product name	Width	Length	Membrane thickness	HDPE sheet thickness
Pre-applied HDPE waterproof membrane with sand	1m/2m	20m	1.2mm	0.8mm
Pre-applied HDPE waterproof membrane with sand	1m/2m	20m	1.5mm	1.0mm
