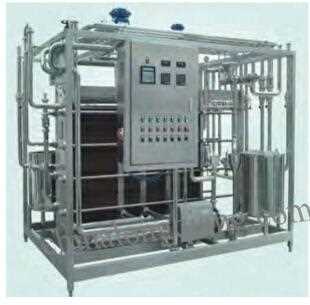

Plate pasteurizer Hit count 2697

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Technical:

5→65℃(Homogenization)→85-65℃(15S)→5℃

Application:

The unit can be connect with separator,homogenizer,flash evaporator and degasser etc.This is unit is used as pasteurizer.(widely used in fresh milk,milk beverage,juice,tea,alcohol,ice cream etc).And also pre-sterilize material when producing pasteurized milk(long life milk).

Features:

This machine has features of high heat recovery,lower energy cost,strict design on the construction and easy operation,simple maintenance.

Parameters:

Model	Process capacity (T/H)	Heat exchanging area	Power(Kw)	Steam Consumption(kg/h)	External dimension(mm)	Total weight of machine(kg)
BR16-3-0.5	0.5	5	5.2	52	1200×1200×1500	790kg
BR16-3-1	1	8	5.2	60	1500×1500×1800	880kg
BR16-3-2	2t/h	13	6	104	1800×2000×1800	980kg
BR26-3-3	3t/h	20	6	156	2000×2000×2200	1080kg
BR26-3-4-5	4-5t/h	30-45	8	260	2250×2000×2200	1250kg
BR26-3-6-8	6-8t/h	35-50	8	400	2250×2000×2200	1250kg
BR26-3-10	10t/h	60-	11	520	2800×2000×2200	1650kg
BR35-3-15	15t/h	75	15	780	3000×2200×2200	2150kg
BR35-3-20	20t/h	80	18	945	3300×2200×2200	2350kg
