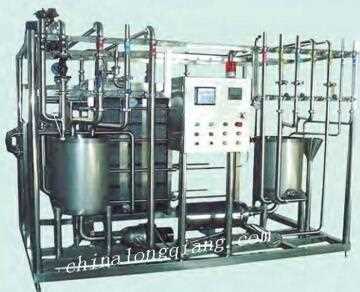

This UHT system adopts ultra high treatment to sterilize the liquid dairy products,tea drink and juice for the aseptic filling production;The sterilize temperature is 137 degree.Holing for 3-5S.By this procedure to remain the nature nutrition and flavor of the milk and juice;This machine has the following characteristics:Hight heat resuse efficiency,tight structure design fine looking and temperature control well etc;Discharge temperature of the machine can be self controlled so it is available for the hot filling procedure and meanwhile for aseptic cold filling.

Technicals:

5→65℃(Homogenizer)→137℃（3-5S）→20℃→25℃

Parameters:

Model

Production capacity (L/H)

Inlet temperature

Holding time(s)

Sterilizing temperature

Product outlet temperature

Ice water inlet temperature

Steam pressure

Steam consumption

Compressed air pressure

Compressed air consumption

Dimension

Total weight of machine

LG-UHT-1

1000

5℃

4-15

105-143℃

20℃

≤2℃

0．5MPa

～150Kg/h

0．6MPa

50L/H

3500×2000×2500

1700kg

LG-UHT-2

2000

5℃

4-15

105-143℃

20℃

≤2℃

0．5MPa

～210Kg/h

0．6MPa

50L/H

3500×2000×2500

2000kg

LG-UHT-3

3000

5℃

4-15

105-143℃

20℃

≤2℃

0．5MPa

～280Kg/h

0．6MPa

60L/H

4500×2500×2200

2200kg

LG-UHT-4

4000

5℃

4-15

105-143℃

20℃

≤2℃

0．5MPa

～350Kg/h

0．6MPa

60L/H

5000×2000×2200

2500kg

LG-UHT-5

5000

5℃

4-15

105-143℃

20℃

≤2℃

0．5MPa

～420Kg/h

0．6MPa

70L/H

5000×2000×2200

2800kg
