SPECIFICATION:

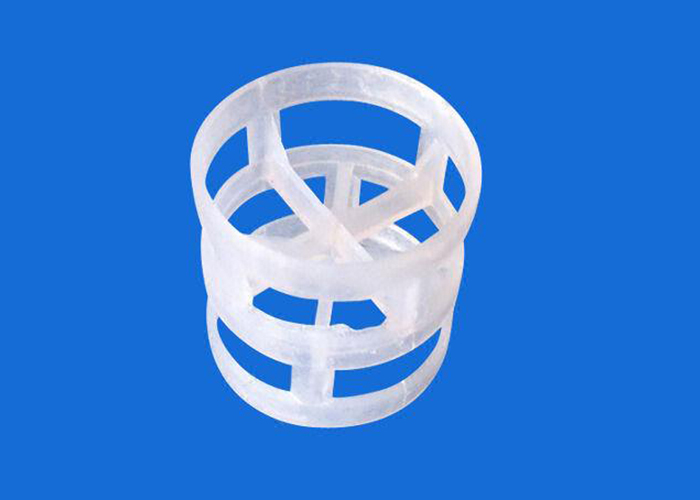

The Parameters of Plastic pall ring



Model	SizeD*H*δ/mm	No. Per Volumen/m3	Specific  Aream2/m3	Void Volume%	Drying Packing Factorm-1
Dg16	16X16X1.0	180000	188	91.1	275
Dg25	25X25X1.2	49000	175	90.0	239
Dg38	38X38X1.4	13600	155	89.0	220
Dg50	50X50X1.5	6300	93	90.0	127
Dg76	76X76X2.6	1830	73.2	92.0	94
Dg100	100X100X3	880	72	90.0	92

ADVANTAGES:

Pall Ring, the structure improve distribution of gas-liquid  and its efficiency can be improved  above 50%,and only has half of pressure drop compared with Raschig ring.



Features: Pall ring has some advantages, such as lower pressure drop, big flux, high efficiency, which HYPAK packing has better efficiency and lower pressure drop and better distribution of liquid compared with common pall ring.



Application: It can be applied to various of device of  isolation, absorption, desorption, common decompression such as toluene separation, ethylbenzene separation,isooctane separation and desulfurization system and so on.



Materials: PP, PE, RPP, PVC, CPVC, PVDF, etc
