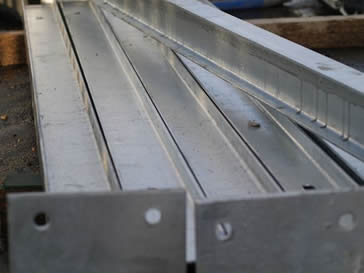

Palisade Fencing Post for three different installation methods

Palisade post is an integral part of palisade fencing and supports the whole fencing panels. It is used to be hot-rolled RSJ beam with the same height and surface finish with the palisade fencing. As far as the head type, the RSJ beam is often one-pointed. Palisade fence is installed in different methods as the fig 1 to fig 3 in the below.

Table 1 - Dimensions of RSJ post for palisade fencing

Palisade fencing type	Palisade fencing item	Fence height above ground (m)	Post
			RSJ beam (mm)	Embedded length (mm)
General Palisade Fencing	GP15	1.50	102 × 44	525
General Palisade Fencing	GP18	1.80	102 × 44	525
General Palisade Fencing	GP21	2.10	102 × 44	625
General Palisade Fencing	GP24	2.40	102 × 44	725
High Security Palisade Fencing	SP30	3.0	127 × 76	925
High Security Palisade Fencing	SP36	3.6	127 × 76	1125

However, for palisade fencing gates, the RHS tube post is often equipped. Similar to RSJ posts, it is also has the same surface finish and height as the fence. Besides, post caps are available to prohibit rain.

Table 2 - RHS post for palisade fencing gate

Fence height (m)	Embedded length (mm)	RHS post sizes for palisade gate leaf widths (mm)
		≤1.5m	1.5-1.75m	1.75-2.5m	2.5-3.5m	3.5-3.75m	3.7-4.75m	4.75-5.5m	5.5-6.5m
1.5	525	80 × 80 × 5.0	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3
1.8	525	80 × 80 × 5.0	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3
2.1	625	80 × 80 × 5.0	100 × 100 × 6.3	120 × 120 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 10
2.4	725	80 × 80 × 5.0	100 × 100 × 6.3	120 × 120 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 10
3.0	925	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 8.0	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	250 × 250 × 8
3.6	1125	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 8.0	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	250 × 250 × 8

Three fixing methods:
Fig-1. Set in concrete foundation.
Fig-2. Bolted down to concrete by base plate.
Fig-3. Cranked post designed for the palisade fence installed on the wall.
