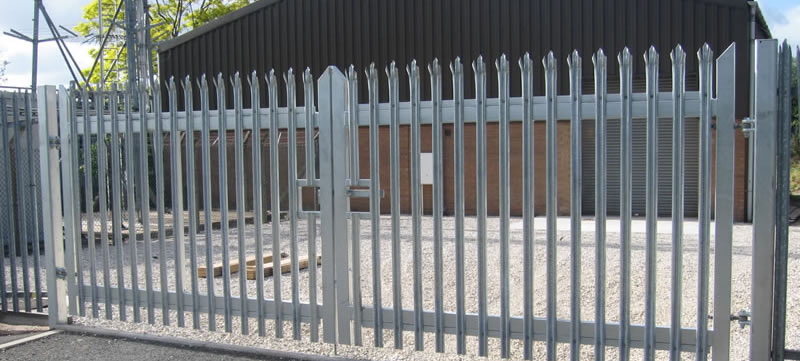

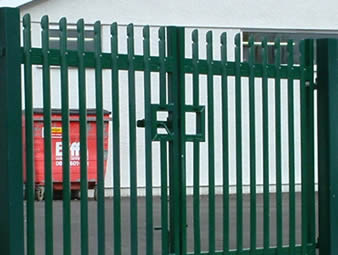

Palisade Fencing Gate - Safe Access to the Place

Steel palisade gate, matched with the palisade fencing, is designed with the same palisade pales, head styles and height as the fencing itself. To suit different requirements, single, double and swing palisade gates are supplied. Standard gate dimensions including frame, gate height and post are as the tables bellow.

Palisade fencing gate description:

• Item: palisade fencing gate.
• Specification: EN BS 1722-12:1999.
• Type: single or double leaves.
• Surface finish: galvanised or powder coated.
• Pale: corrugated D & W section, angle section.
• Head: one-pointed, triple-pointed, round, round & notched or as required.
• Height: 1.5m, 1.8m, 2.1m, 2.4m, 3.0m & 3.6m.
• Length: 1.5m to 6.5m (single).
• Gate post & frame: see details in Table 1, 2 & 3.

Table 1 - Frame sizes for palisade gate ( pairs or singles)

Fence height	Frame sizes for palisade gate leaf widths (mm)
	≤1.5m	1.5 - 1.75m	1.75-2.5m	2.5-3.5m	3.5-3.75m	3.75-4.75m	4.75-5.5m	5.5-6.5m
1.5m	60 × 40 × 4.0	60 × 40 × 4.0	80 × 40 × 4.0	90 × 50 × 3.6	90 × 50 × 3.6	90 × 50 × 3.6	90 × 50 × 3.6	100 × 60 × 5.0
1.8m	60 × 40 × 4.0	60 × 40 × 4.0	80 × 40 × 4.0	90 × 50 × 3.6	90 × 50 × 3.6	90 × 50 × 3.6	90 × 50 × 3.6	100 × 60 × 5.0
2.1m	60 × 40 × 4.0	60 × 40 × 4.0	80 × 40 × 4.0	90 × 50 × 3.6	90 × 50 × 3.6	90 × 50 × 3.6	100 × 60 × 5.0	100 × 60 × 5.0
2.4m	60 × 40 × 4.0	60 × 40 × 4.0	80 × 40 × 4.0	90 × 50 × 3.6	90 × 50 × 3.6	100 × 60 × 5.0	100 × 60 × 5.0	100 × 60 × 5.0
3.0m	90 × 50 × 3.6	90 × 50 × 3.6	100 × 60 × 5.0	100 × 60 × 5.0	100 × 60 × 5.0	100 × 60 × 5.0	120 × 120 × 5.0	120 × 120 × 5.0
3.6m	90 × 50 × 3.6	90 × 50 × 3.6	100 × 60 × 5.0	100 × 60 × 5.0	100 × 60 × 5.0	100 × 60 × 5.0	120 × 120 × 5.0	120 × 120 × 5.0

Table 2 - Steel posts in RSJ, UB or UC for palisade gate leaf widths (pairs or singles)

Fence height	Embedded length (mm)	RSJ, UB OR UC steel posts for palisade gate leaf widths (mm)
		≤1.5m	1.5-1.75m	1.75-2.5m	2.5-3.5m	3.5-3.75m	3.75-4.75m	4.75-5.5m	5.5-6.5m
1.5m	525	178 × 102 × 19	178 × 102 × 19	152 × 152 × 37	152 × 152 × 37	203 × 203 × 60	203 × 203 × 60	203 × 203 × 60	203 × 203 × 86
1.8m	525	178 × 102 × 19	178 × 102 × 19	152 × 152 × 37	152 × 152 × 37	203 × 203 × 60	203 × 203 × 60	203 × 203 × 60	203 × 203 × 86
2.1m	625	178 × 102 × 19	178 × 102 × 19	152 × 152 × 37	203 × 203 × 60	203 × 203 × 60	203 × 203 × 86	203 × 203 × 86	254 × 254 × 107
2.4m	725	178 × 102 × 19	152 × 152 × 37	152 × 152 × 37	203 × 203 × 60	203 × 203 × 60	203 × 203 × 86	254 × 254 × 89	254 × 254 × 107
3.0m	925	152 × 152 × 37	152 × 152 × 37	203 × 203 × 60	203 × 203 × 60	254 × 254 × 89	203 × 203 × 86	254 × 254 × 89	305 × 305 × 97
3.6m	1125	152 × 152 × 37	152 × 152 × 37	203 × 203 × 60	203 × 203 × 60	254 × 254 × 89	254 × 254 × 89	254 × 254 × 89	305 × 305 × 97

Table -3 Steel posts in RHS for palisade gate leaf widths (pairs or singles)

Fence height	Embedded length (mm)	RHS post sizes for palisade gate leaf widths (mm)
		≤1.5m	1.5-1.75m	1.75-2.5m	2.5-3.5m	3.5-3.75m	3.75-4.75m	4.75-5.5m	5.5-6.5m
1.5m	525	80 × 80 × 5.0	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3
1.8m	525	80 × 80 × 5.0	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3
2.1m	625	80 × 80 × 5.0	100 × 100 × 6.3	120 × 120 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 10
2.4m	725	80 × 80 × 5.0	100 × 100 × 6.3	120 × 120 × 6.3	120 × 120 × 6.3	150 × 150 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 10
3.0m	925	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 8.0	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	250 × 250 × 8
3.6m	1125	100 × 100 × 6.3	100 × 100 × 6.3	120 × 120 × 6.3	150 × 150 × 8.0	200 × 200 × 6.3	200 × 200 × 6.3	200 × 200 × 6.3	250 × 250 × 8
