Specifications

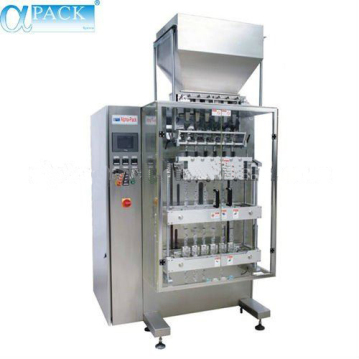

1.8 line stick packing machine
2.automatically measuring, feeding, filling,bag forming,printing,bag sealing and cutting
Application:
Power, liquid, cream and granule like sugar, coffee packed in a long narrow pouch. Packing for different materials can be accomplished by different dosing unit.
Standard Features:
1. The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming, date code printing, bag sealing and cutting. And hole punching as option.
2. Motor driven heat seal film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within +/- 1ºC
Optional Parts for Main Machine:
1. Date Code Printer
2. Straight Line Cut with easy tear
3. Hole punching device
4. Fix number bag cutting device
Technical Specification:
|
Model No.
|
MLP-04-480
|
MLP-06-480
|
MLP-08-480
|
|
Bag Length (mm)
|
70-200
|
70-200
|
70-200
|
|
Bag Width (mm)
|
16-50
|
16-35
|
16-25
|
|
Film Width (mm)
|
Max.480
|
Max.480
|
Max.480
|
|
Lanes No.
|
4
|
6
|
8
|
|
Speed (Bag/min)
|
120-180
|
180-270
|
240-360
|
