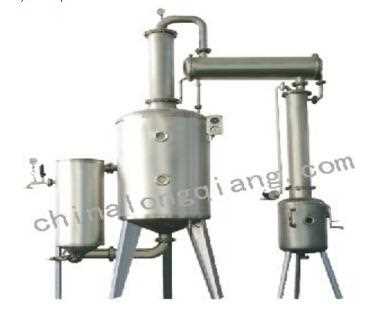

Multipe function alcohol recycle evaporator Hit count 1112

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

1.Alcohol reclamation:The large reclamation capacity and the vacuum operation mode improve the craft process with a reclamation rate of alcohol of 95%and a loss rate of alcohol below 5%. The power consumption lower for 30%, which improves that the device is a energy-saving equipment with economical investment and high reclamation economy profit.

2.Cocentrated liquid material:The device uses the modes of outer-headed natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportion of (1.3-1.4);The device is easy to handle and it needs a little foundation area for installation.The heater and Evaporator use stainless steel for thermal purpose.The surface is treated with sand grinding and surface polishing, meeting with the GMP standard.

Parameters:

Type Specifications		JN-500	JN-1000	JN-1500
Evaporation capacity （kg/h)		500	1000	1500
Recovery Alcohol		200Kg/h	350 Kg/h	500 Kg/h
Alcohol recovery density (％)		85Calcohol degree
Working pressure(Mpa)		0.03—0.09MPa
Evaporation temperature （℃)		40-85℃
Vacuity		Higher than 620mm Hg
Concentrate rate		1.2—1.4
Equipment weight （kg)		1300kg	1850kg	2850kg
Size(MM)	Length	2000	2200	2500
	Wide	1000	1200	1300
	Height	3000	3300	3500
