Mobile stone Jaw Crusher for primary crushing

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Detail

--- mini rock crusher,small stone jaw crusher for sale

Description of price for mobile stone crusher

Laboratory Jaw Crusher is a new generation of crushing equipment with easy open of dynamic and static jaws, convenient clean-up and no blending of samples.

It is capable of fine and medium crushing a variety of ores and materials with compressive strength of 24kg/cm2 and below. with great crushing ratio, uniform particle size and adjustment of output size.

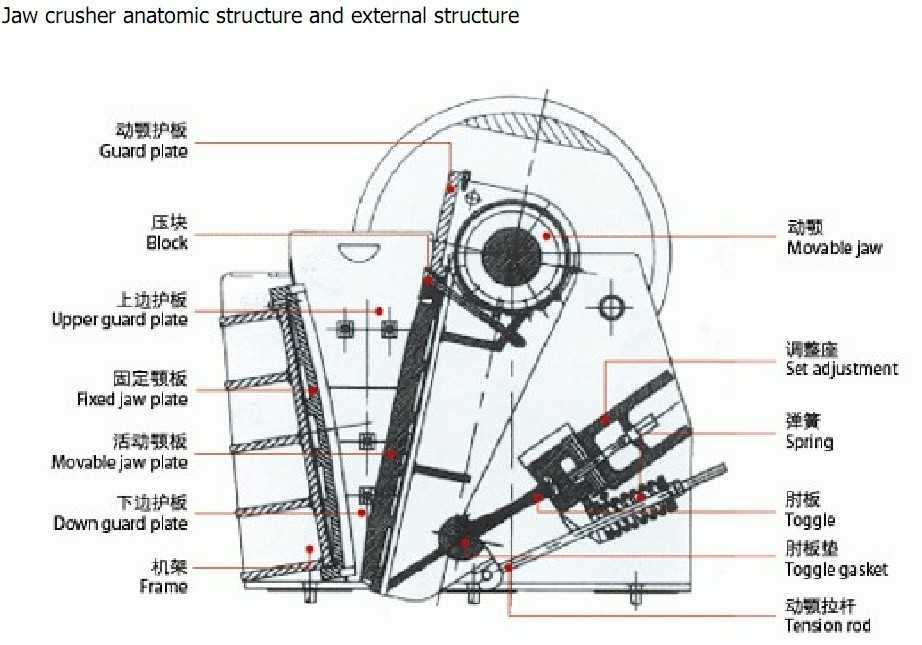

Main structure of price for mobile stone crusher

Machine body, Moving jaw , Eccentric shaft, Jaw plate, Flywheel, Belt pulley, Moving part, Motor, Feed hopper and Receiving hopper.

Detail

Main Features of price for mobile stone crusher

-High crush effect.

-Mini size, low weight, easy moving , not occupy much area.

-Easy operation & maintenance

-Suitable for small processing capacity, especially for Laboratory use.

-Small output size, different model can meet different feeding size.

Working principle of price for mobile stone crusher

Laboratory jaw crusher uses the motor to drive belt and pulley, through the eccentric shaft to make the jaw move up and down, when movable jaw falls, the angle between the fixed jaw and the movable jaw become smaller.

The materials are crushed to achieve crushing the purpose; when movable jaw rises, the angle between the movable jaw and the fixed jaw become larger, the movable jaw plate leaves the fixed jaw plate under the action of a pull rod. At this time materials broken discharge from the crushing chamber. Many models available based on different working capability.
