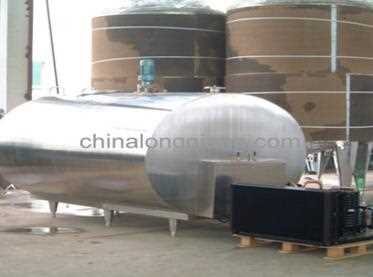

Milk cooling tank
Longqiang Milk cooling storage tank is mainly used for preserving and storing fresh milk or other fresh liquid. It's the ideal cooling and storage equipment for pasture,milk station,milk factory,food factory,and beverage factory and pharmacy industry.
Tank part
Vol:500L-1200L
Material:SUS304 or other
Isolation material:PU foam
Cooling system
Compressor: Maneurop or Century Tecumseh Brand.
Refrigerant:R404A or R22
Characteristics of Control Cabinet :
A.Temperature Meter:Temperature show
B.Refrigerator control system set and the milk temperature adjustment.
C.Adjusts the Agitator for fully mixing up.
D.Function of the panel:alarm of warning.
This system can cool large area of the inside vessel surface,ultilizing the automatic computer control system to observe and operate,which can quickly lower the temperature to 4℃ and keep this constant temperature,which prevent the growth of the germs.The refrigeration conpressor unit shows good performance and energy-saving European “Maneurop”Danfoss compressor,equipped with the creditable midpoint protector that will prevent the equipment from burn out caused by over-loading or system fault.The heat preservation layer ultilized the new technique of the anti-aging polyurethane foam, it owns the brilliant chacteristics of heat insulation.The body of the tank(vessal) is made of high quality stainless steel material 304(Ocr18Ni9),equipped with automatic cleaningball and mixing system.
Technical parameter:
|
Vessal
Capacity(L)
|
P.F(W) |
REV |
Matched power |
Size(L*W*H) |
Refrigerant |
Power supply |
| 500 |
5322 |
33r/m |
3KW |
900*900*1600 |
R404A |
380V/3/50Hz |
| 1000 |
8842 |
33r/m |
4.5 KW |
2200*1350*1550 |
R404A |
380V/3/50Hz |
| 1500 |
11244 |
33r/m |
5KW |
2200*1200*1750 |
R404A |
380V/3/50Hz |
| 2000 |
13221 |
33r/m |
6 KW |
3300*1500*1700 |
R404A |
380V/3/50Hz |
| 2500 |
16221 |
33r/m |
7 KW |
3700*1450*1500 |
R404A |
380V/3/50Hz |
| 3000 |
16221 |
33r/m |
7KW |
3950*1500*1700 |
R404A |
380V/3/50Hz |
| 4000 |
32442 |
33r/m |
14 KW |
3950*1900*1850 |
R404A |
380V/3/50Hz |
| 5000 |
32442 |
33r/m |
14 KW |
4200*2100*2000 |
R404A |
380V/3/50Hz |
| 6000 |
40000 |
33r/m |
14 KW |
4200*2100*2200 |
R404A |
380V/3/50Hz |
| 8000 |
41688 |
33r/m |
19KW |
5200*2200*2150 |
R404A |
380V/3/50Hz |
| 10000 |
51360 |
33r/m |
23KW |
6000*2200*2150 |
R404A |
380V/3/50Hz |
| 12000 |
51360 |
33r/m |
23KW |
6000*2200*2300 |
R404A |
380V/3/50
380V/3/50Hz
|
