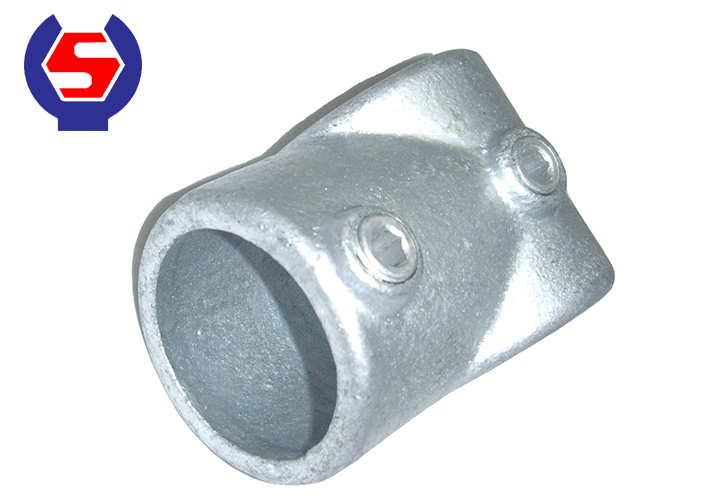

Malleable Iron Pipe Short Tee

Malleable Iron Pipe Clamps

Malleable Iron Pipe Clamps Type 101 Short Tee  90° butt joint, often used to join intermediate uprights to top rails and middle rails to end uprights on level sites. This pipe clamp cannot be used where through tube (horizontal) has to be joined within the fitting (See pipe clamp 104).
Body Material Standard	Malleable Iron, meet standard ASTM A197
Screw	Stainless and Carbon Steel
Tensile Strength	>=350Mpa
Elongation	>=10%
Hardness	HB<=150
Size Available	AA to E (OD size 27-60 MM)
Surface Treatment	Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated
Pipe Clamp Size	Nominal Bore	Outside Diameter
AA21	1/2’’	21.3mm
A27	3/4’’	26.9mm
B34	1’’	33.7mm
C42	1-1/4’’	42.4mm
D48	1-1/2’’	48.3mm
E60	2’’	60.3mm



Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.
