Product Description:
The QHB series lollipop depositing line is an advanced equipment to produce lollipop. The operation is controlled by a PLC/program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop.The line is a full-automatic plant equipped with an automatic stick insertion system.
Moreover, just change the moulds ,tt is available to produce both hard candy and lollipop on the same depositing line.

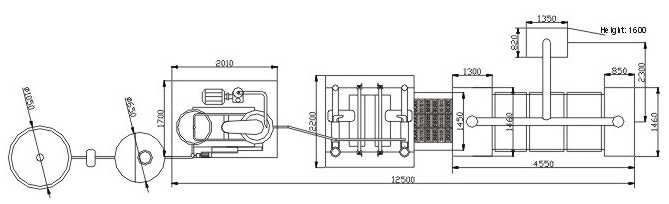

Layout：


Parameter:


MODEL	QH150	QH300	QH450	QH600
Capacity(kg/hr)	150	300	450	600
Max candy weight	26g	26g	26g	26g
Lollipop Diameter	Flat:18-28mm            Ball:Max 25mm
Depositing speed	55-65n/min	55-65n/min	55-65n/min	55-65n/min
Stick Specification	60-100mm	60-100mm	60-100mm	60-100mm
Compressed air requirement	0.2m³/min, 0.4-0.6Mpa	0.2m³/min, 0.4-0.6Mpa	0.2m³/min, 0.4-0.6Mpa	0.2m³/min ,0.4-0.6Mpa
Working condition	Temp:20-25℃  Humidity:55%	Temp:20-25℃  Humidity:55%	Temp:20-25℃  Humidity:55%	Temp:20-25℃  Humidity:55%
Total Power	18kw/380V	27kw/380V	34kw/380V	38kw/380V
Total Length	17m	19m	19m	22m
Total Weight	3500kg	4000kg	4500kg	5000kg
