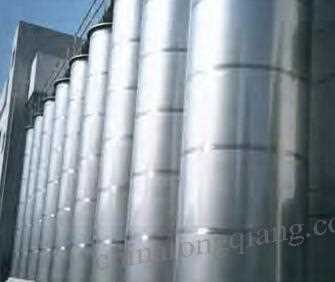

Large Outdoor Silo Tank Hit count 968

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Applicable range

Common large outdoor dairy storage equipment in large and medium dairy processing enterprises.

In industries such as fruit juice and pharmacy etc.

Structure characteristics

Adopt structure of internal tank and external package with heat preservation materials inside.

Miller board jacket cooling design for keeping freshness and quality of dairy products.

Humanized design of door hole and easy to operate.

Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation

Configuration:

cleaner

Breathing cover

Sampling valve

Manhole Side blender

Jacket(According to customer requriements)

Thermometer(According to customer requirements)

Pressure sensor(According to customer requirements)

Temperature converter(According to customer requirements)

Ladder and platform

Technical parameters:

Effective volume （L）	Dimension of tank（Dh）（mmmm）	Total height （mm）	Insulation （mm）	Diameter of inlet and outlet （mm）	Motor power （kw）	Blending speed ( r/min）
20000	2260*5600	7000	100	51	5.5	960
30000	2800*5600	7500	100	51	5.5	960
50000	2800*5600	7500	100	51	5.5	960
60000	3000*9500	11100	100	51	5.5	960
100000	3400*11000	12600	100	51	5.5*2	960
120000	3400*13500	15100	100	51	5.5*2	960
