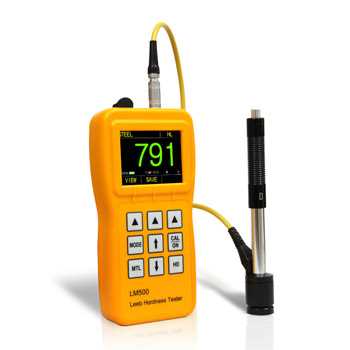

Specifications of LM500 Leeb Hardness Tester Display High-Definiation 2.4" IPS Display Measuring Method Leeb Hardness Testing Method,Impact Type Hardness Scale HL, HB, HRB, HRC, HV, HS, Strength (σb) Measuring Range HLD（200-960） HRC（19.8-68.5）HRB（13.5-100） HB（30-651）HV（80-976） HS（26.4-99.5）σb（375-2639） Impact Devices D type impact device (Standard); Interchangeable D/DC/DL type impact device (Optional) Accuracy Measuring Error:±6HLD (HLD=800), Repeatability:±6HLD (HLD=800) Measuring Direction 360 degree Material Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass, Forged Steel, Alloy Tool Steel Resolution 1HL，1HV，1HB，0.1HRB，0.1HRC，0.1HS Language Multiple languages Software Standard LmView software, for management, archiving and printing the measurement data Power Two Alkaline battery Data Memory 200 Files, 11000 Groups（each group includes 1-8 testing values and 1 average value） Temperature -10℃~ +50℃ Size 153mm×76mm×37mm（H×W×D) Weight 280g include batteries Standard GB/T 17394-1998,ASTM A956 Standard Configuration LM500 Leeb Hardness Tester,  Standard Hardness Test Block, Software, USB Cable, Support Ring, Cleaning Brush, Packing Files, Instrument Case Optional Accessories Impact Device: D/C/G/DC/DL/D+15, Leeb Hardness Test Block, Rubber Protective Case, Belt, Standard Support Ring, Small Support Ring, Special Support Ring
