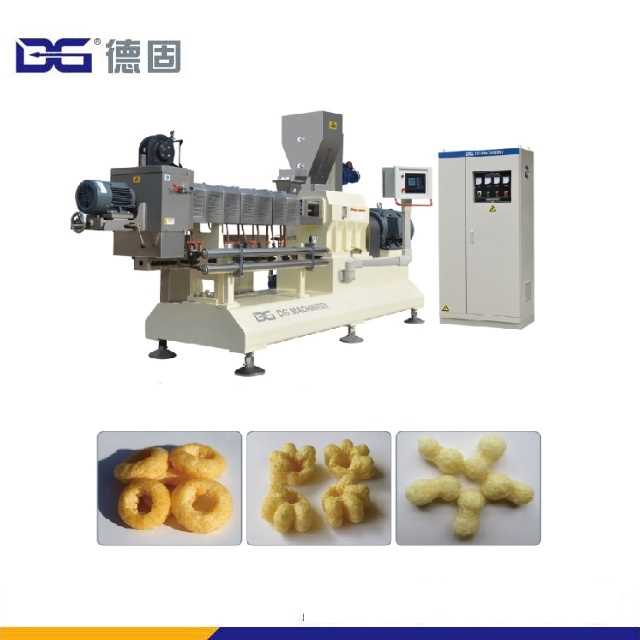

I. Twin Screw Extruder Production Equipment For Chocolate Cream Corn Sticks Automatic
This corn puff snacks production line is applied to make directly puffed / extruded snacks with different shapes , the main raw material is corn flour ,wheat flour, rice flour and so on . With core filling machines and the shapers , you can also make core-filling snacks with this production line
A typical co-extrusion processing line includes mixing and oil spraying systems, a twin-screw extruder at the heart of the process and shaping equipment. Drying, coating and cooling devices are then used accordingly.
Extruded flakes can also be made on the same lines with complementary equipment.

II. Machine list of Twin Screw Extruder Production Equipment For Chocolate Cream Corn Sticks Automatic
1. Mixer : mix the raw material equally
2. Conveyor : take the raw material to the extruder
3. Extruder : to cook the raw material with high temp and pressure to make them puffed
4. Injector : inject chocolate / jam/ butter to the center of the snacks
5. Cutter : Cut the core-filled snacks into certain length
6. Elevator : take the snacks to the oven
7. Oven : Bake the snacks to be crispy
8. Flavoring line : Spray oil and powder type seasonings to make different flavors
III. Raw material : corn flour, wheat flour , rice flour

IV. Flavoring material : sugar powder , caramel , cream , food oil , chilly powder and so on

V. Heating source of oven : Electricity , gas or deisel

VI. Machine power supply : electricity

Model	Capacity	Installed power	Dimension
DG65-II	100~150 kg/h	52kw	22600×3000×2500mm
DG70-II	200~300 kg/h	86kw	24000×3000×2500mm
DG75-II	300~350 kg/h	116kw	26000×2500×2500mm
DG85-IV	400~600 kg/h	141 kw	27300×3000×2500mm
