Hot Selling Matte Metallic truss girder welding machine With Best Service

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

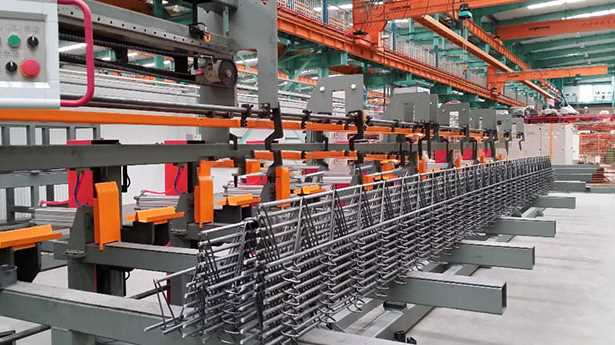

Automatic truss girder welding machine with high performance
Automatic truss girder welding machine with high performanceSKZL350X lattice girder welding machine is complete equipment for lattice girder welding, manufactured by SKZ based on learning foreign advanced experiences and advanced technologies in addition to actual production demands in the international market. This equipment can finish decoiling, straightening,forming and welding in one machine. It has many favorable features, such as high output, high precision, easy modification, low operation failure rate, strong capability in energy saving, low consumption, and high quality.use bar in coil to produce lattice girder automatically.

Automatic truss girder welding machine with high performance needs very few labor works and processes rebar accurately according to standard length and size at high efficiency, easy operation.

Packaging & Delivery
Packaging Details
The Best automatic truss grider welding machine with high performance
Delivery Time 60 days after getting full payment

Delivery Time
After 60 days

Main Technical Specifications of CNC truss / lattice girder machine

Model	KZL350X
Labeled electric power(kw)	3×250
Air pressure(Mpa)	0.6-0.8
Coolant flow(L/min)	>150
Coolant temperature(℃)	≤30
Oil pressure(Mpa)	7-11
Longitudinal wire diameter(upper)(mm)	6-16
Longitudinal wire diameter(lower)(mm)	6-16
Diagonal wire diameter(mm)	4-8
Production rate(maximum)(m/min)	12
Girder height(mm)	70-350(before bending)
Girder internal base width(mm)	65-100
Diagonal spacing(mm)	190-210
Over Dimension(mm)	39400×4400×3300
