Application
This machine is mainly used for making pellet, film coating on tablets. It can also be used for making
ball shape products or granules, mixing, and polishing, etc.
Such as: chocolate polishing, peanut coating, sugar coating, seasoning, producing tapioca
pearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.

Working principle

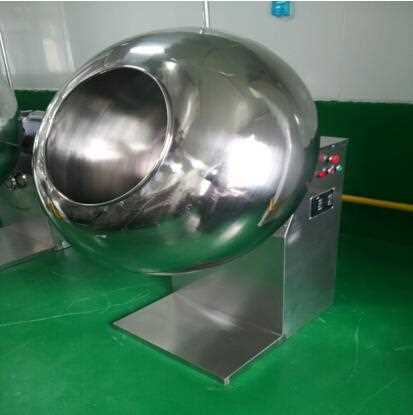

This machine consists of main body, worm wheel box, coating pan, heating device, hot air & common blower, electrical equipment, etc.
The transmission process that the motor drives the worm wheel and worm via triangle belt to
make the coating pan rotate. Then the material revolves up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.

Model	BY200	BY300	BY400	BY600
Dia of pan(mm)	200	300	400	600
Capacity(kg/batch)	1	2	5	15
Rotation speed(r/min)	0-46	0-46	0-46	0-36
Power of motor(kw)	0.37	0.37	0.37	0.75
Power of fan(w)	75	75	75	75
Power of heating(kw)	1.2	1.2	1.2	2
Overall size (L*W*H)(mm)	500*350 *700	500*350 *700	550*400 *800	800*600 *900
Weight(kg)	36	37	38	85

Model	BY800	BY1000	BY1250	BY1500
Dia of pan(mm)	800	1000	1250	1500
Capacity(kg/batch)	30-50	50-70	80-150	300-400
Rotation speed(r/min)	0-36	0-32	0-28	0-26
Power of motor(kw)	1.5	1.5	3	5.5
Power of fan(w)	120	120	180	370
Power of heating(kw)	2	3	5	6
Overall size (L*W*H)(mm)	1000*800 *1430	1100*1000 *1560	1250*1200 *1820	1500*1500*1980
Weight(kg)	205	220	350	600
