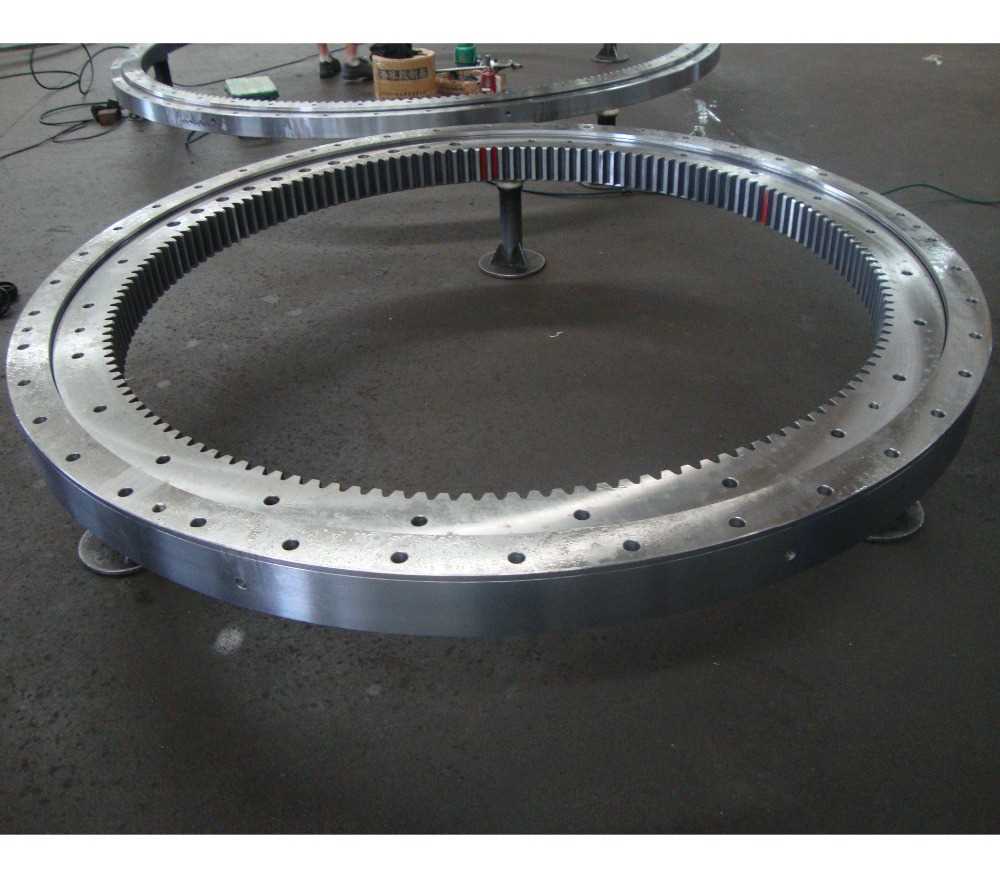

High Quality Slewing Bearing for Tunnel Boring Machine for Sale

FOB Reference Price / Min.Order Quantity

USD 13000.00-13500.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time:30 days

Packaging Details: Painting anti-rust oil before packing.

Port: Shang Hai

Payment Terms: L/C , T/T , other

Product Name	Slewing Bearing for Tunnel Boring Machine(TBM)
Model Number	IGSCRM 2280 1834 150
Application	Tunnel Boring Machine(TBM)
Gear Option	Internal Gear
Seal Type	Rubber Sealed
Features	Single Row Cross Roller
Brand	Leadway/UIPI
B.C. Diameter	2213 mm ( outer ring ) 1988 mm ( inner ring )
Outer diameter	2280 mm (89.764")
Inner diameter	1833.6 mm (72.189")
Roller Diameter	45×44.5mm
Height	150mm (5.906")
Axial play	0.00 mm~0.15 mm (0.00~0.0059")
Radial play	0.00 mm~0.15 mm (0.00~0.0059")
Core hardness	250-300HB quenching and tempering
Raceway Hardness	55-60HRC quenching
Material	GB42CrMo (DIN42CrMo4/BS708A42/AISI4140)
Operating Temperature	-40°C to +50°C
Grease	EP2 lithium lubricating grease
Weight	1282 kg
Place of Origin	Luoyang, Henan, China
Certificate	API Q1 Certificate (American Petroleum Institute) Quality Assured Firm Qualified to be used in Petroleum machinery equipment. (The first and the only slewing bearing manufacturer in China) ISO9001:2008 Certificate
Services	OEM Service, Customized Service, Design Service
