Headform Test Device For Safety Glazing Materials Testing in builidings ISO 3537

FOB Reference Price / Min.Order Quantity

USD 420.00-500.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:15-30 days

Packaging Details: Plywood Case (Meet import and export requirements)

Port: Tianjin

Payment Terms: , , ,

Product Details Company Profile

Related Standard:
ISO 3537 Road vehicles –Safety glazing materials — Mechanical tests – Clause 10 Head-form test

Principle: Assessment of the minimum strength and cohesion of the safety glazing material under impact from a blunt, bulky object. If required, tests can be performed on whole windscreens.

Application:
The purpose of this test is to verify the compliance of glazing with the asking relating to the limitation of injury in the event of impact of the head against the windscreen, laminated glass and glazing of glass-plastic and rigid plastic other than windscreens, together with The double-glazed units used in the side windows.

Techinical Data:
Head-form Weight: 10kg
Head-form Size: 500mm*932mm
Impact height: < 1.5m
Samples size: 1100mm*500mm
Felt hat: 90g/89mm Thickness:5mm
Frame size: 1376mm*670mm*320mm

Apparatus:

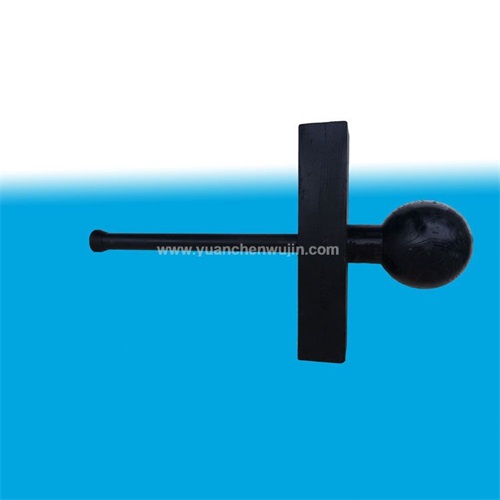

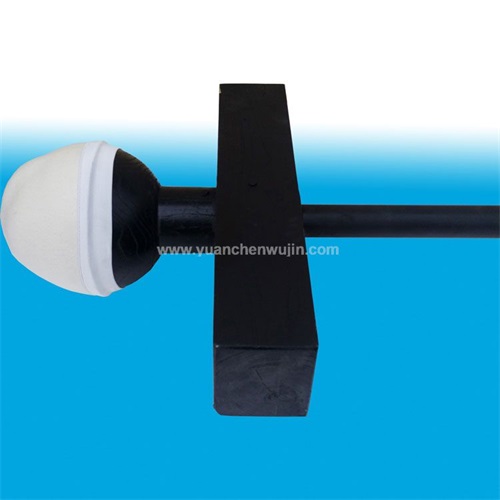

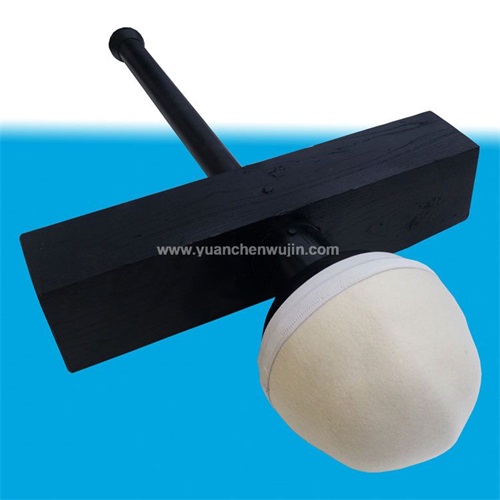

Head-form weight, with a spherical or semi-spherical head made of laminated hard wood covered with replaceable felt and without a cross-beam made of wood. Between the spherical part and the cross-beam, there is a neck-shaped intermediate piece and on the other side of the cross-beam, a mouning rod.

The total mass of the apparatus shall be 10kg±0.2kg
