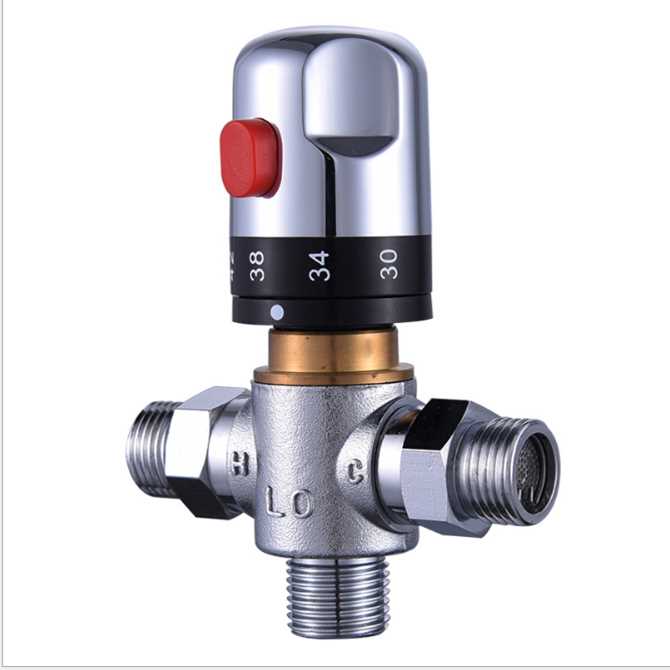

HONHDEC Wholesale G1/2 Male Connections Solid Brass 3 Way Thermostatic Mixing Valve for Sale

FOB Reference Price / Min.Order Quantity

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Material: Brass main body
Material Analysis: Cu>=59%
Work pressure: 0.05Mpa—1Mpa
Ideal pressure: 0.1Mpa—0.5Mpa.Installation pressure release valve when exceed ideal pressure.
Standard pressure: Dynamic pressure0.3±0.02Mpa.
Water Pressure Testing: 1.6MPA
Air Pressure Testing: 0.6MPA
Cold water supply temperature: 4-29°C
Hot water supply temperature: 55-85°C
Proposed water supply temperature: 55-70°C
Out water temperature range: 20-55°C
The safety temperature: 38°C
Safety characteristic: If cold water supply fails ,flow rate will be reduced to virtually shut off which avoid the risk of scalding.
Temperature accuracy: Kept constant ±2°C for the setting.
