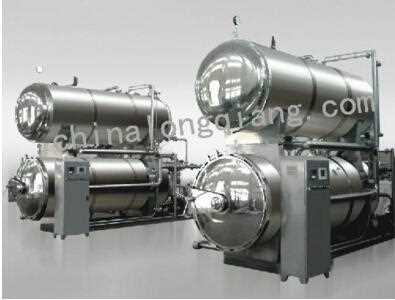

Full water static double tank type Retort Hit count 1378

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Charavteristics of the equipment

1.Uniform heat distribition, non dead angle

The circulating water in the retort continuosly flows toward the up, down ,left and right direction, thus make sure that every point in the retort get the same temperature during the heating , temperature preservation and cooling process.Therefore , the packed food in different position of baskets will be heated uniformly,effectively preventing the dead angle in the sterilization processing , which make sure the unifomity of temperature and heat exchange, Lowering the possibilities of over cooking and guaranteeing accurate F ＆#118alue.

2.High temperature and short time sterilization

This equipment adopts the double tank cycled hot water to sterilize. First , heating up the water to the requiped temperature in advance (except the multi period sterilization), will shorten the sterilization time and obtain higher efficiency.

3.High sterilizating temperature

Adopt the latest technology , this equipment unilize hot water recyling to sterilize. During the sterilization processing , all the data about temperature pressure, steriliazation time, water and air are automatically controlled. The temperature is correct(with a error less than 0.5℃)

4.Energy saving

The medium water used during the sterilization can be used repeatedly , thus saving the energy ,time , manpower and materials , reducing the whole production cost.

5.Fully automated system

A.Controlling through the touching screen and PLC

B.Controlled by the digital reactor and auto ＆#118alue during all the period

C.Can fulfill the multi period sterilization according to the technical requirement.

D.Pressure and temperature digitally displayed

E.All the processing being recorded to the disks.

F.There are various sterilization modes pre stored for choosem, to a maximum of 250 sterilization formulas.

The whole sterilization processing are fully automated, no need of manual operation.

6.The Retort adopts the analog temperature controlled system, you can set multi period heating mode

According to different requipments of dfferent food product , you can set different heating and cooling procedures ,as well as use the multi period heating sterilization mode and twice cooling mode

7.F ＆#118alue measuring function

Each set of water bath Retort could be equiped with the F ＆#118alue measuring function.Being treated by the data processing software, all the sterilization data, including sterilization function condition , F ＆#118alue , time-temperarure chart and time-presssure chart will be saved or printed, which offers convenience to production management.

Note : * means it is optional.

8.Parameters:

Items	Units	Specification
Diameter of the pot body	mm	￠1100	￠1300	￠1500
Number of baskets	species	4	4	4
Maximum working pressure	Mpa	0.35	0.35	0.35
Maximum working temperature	℃	137	137	137
Steam pressure	Mpa	0.6	0.6	0.6
Steam consumption	（cycle）/Kg	300	400	500
Cooling water consumption	Mpa	0.3	0.3	0.3
Consumption of cooling water	(cycle)M³	4~6	5~8	8~12
