FRP ANGLES-Ideal for Reinforcement & Anti-Slipping
FOB Reference Price / Min.Order Quantity
USD
9.00-11.00
/ Meter/Meters |
100.00 Meter/Meters (Min. Order)
Processing Time:7 to 10 work days
Packaging Details:
STANDARD EXPORTING PACKAGE
Port: Qingdao
Payment Terms: , ,
PULTRUDED FRP GRATING– Heavier Loads & Longer Spans
FRP pultruded profiles. It can supply heavier loads and longer spans than comparably sized molded FRP Grating.
I bar, T bar or High-Load bars are supplied for demanding applications ranging from ADA-compliant walkways to heavy duty vehicle traffic decking.
Browse our pultruded FRP grating page for more knowledge about types, specifications and availability.
Want to purchase MOLDED FRP GRATING instead? Click here for more details.
Know more about our products, just browse the PRODUCT LISTS for reference.
Available bearing bars
I bars
T bars
High-Load bars
Available Surface Type
Smooth surface
Gritted surface
Convex surface
Corrugated Surface
Features
- Higher loads. Higher loads and longer span than molded grating.
- Lightweight. 1/3 lighter than steel grating.
- Anti-slipping. Gritted, corrugated or convex surface for safe access.
- Flame retardant. UV inhibitor for UV resistant and fire retardant.
- Corrosion resistance. Excellent chemical and harsh condition resistance.
- Extended life. The coated resin surface increases resistance to chemical corrosion and continuous UV exposure.
- Easy fabrication. Lightweight structure is easy to fabricate by simple hand tools.
- Stability. Higher loads and corrosion resistance for maximum stability.
Classical Applications
- Platform.
- Walkway.
- Catwalk.
- Trench cover.

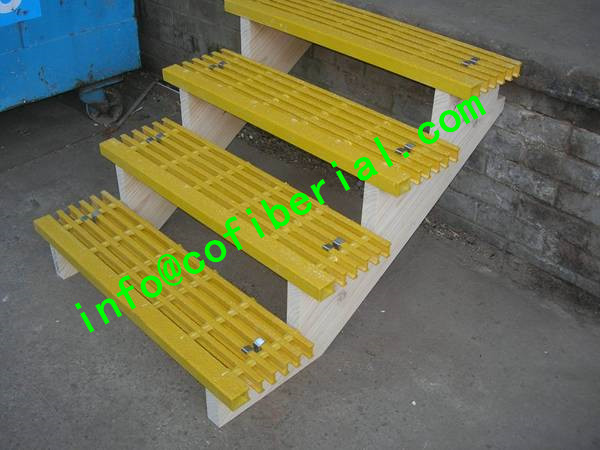

- Stair treads.
- Security fence.
- Boat deck.
- Transformer grating.
Working Platform
Catwalk
Walkway
Stair Treads
Transformer Grating
Drainage Cover
Boat Decking
Trench Cover
|
Type
|
Thickness (inch/mm)
|
Bearing Bars (Top/Bottom) (inch)
|
Weight (kg/㎡)
|
Open Area
|
|---|
| I-4010 |
1"/25.4 |
1"/1" |
18.6 |
40% |
| I-5010 |
1"/25.4 |
1"/1" |
14.3 |
50% |
| I-6010 |
1.25"/31.75 |
1"/1" |
12.8 |
60% |
| I-40125 |
1.25"/31.75 |
1"/1" |
19.88 |
40% |
| I-50125 |
1.25"/31.75 |
1"/1" |
17.4 |
50% |
| I-60125 |
1.25"/31.75 |
1"/1" |
13.8 |
60% |
| I-4015 |
1.5"/38.1 |
1"/1" |
23.6 |
40% |
| I-5015 |
1.5"/38.1 |
1"/1" |
19.82 |
50% |
| I-6015 |
1.5"/38.1 |
1"/1" |
17.80 |
60% |
| I-4020 |
2"/50.8 |
1"/1" |
30.82 |
40% |
