Electric Vehicle Lithium Ion Battery Pack- Golf Cart 72V 150Ah
FOB Reference Price / Min.Order Quantity
USD
0.00-2000.00
/ Piece/Pieces |
1.00 Piece/Pieces (Min. Order)
Processing Time:1 Days - 60 Days
Packaging Details:
STANDARD EXPORTING PACKAGE
Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other
Payment Terms: L/C , T/T , other
Brand:SmartPropel
ELECTRICAL SPECIFICATIONS
|
|---|
| Nominal Voltage |
72V |
| Nominal Capacity |
150Ah |
| Energy |
10800Wh |
| Series and Parallel Connection |
24S6P |
| Resistance |
≤100 mΩ |
| Efficiency |
≥99% |
| Cycle Life |
≥2000 cycles @80%DOD |
| Self Discharge |
<3% per Month |
MECHANICAL SPECIFICATIONS
|
|---|
| Dimensions (L x W x H) |
970*470*155mm |
| Weight |
Approx.105KG |
| Chemistry |
LiFePO4 |
| Cell Type |
Pouch Cell |
| Case Material |
Metal |
| Enclosure Protection |
IP65 |
CHARGE & DISCHARGE SPECIFICATIONS
|
|---|
| Standard Charge Current |
≤30A |
| Max Charge Current |
≤75A |
| Continuous discharge current |
≤ 75A |
| Pulse discharge current |
≤150A |
| Over-discharge protection cut-off voltage |
60V |
| Over-charge protection cut-off voltage |
100.8V |
TEMPERATURE SPECIFICATIONS
|
|---|
| Discharge Temperature |
-4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature |
32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature |
77±3 ºF (25±3ºC) |
COMPLIANCE SPECIFICATIONS
|
|---|
| Certifications for cell |
CE |
| |
RoHs |
| |
UN38.3 |
Shenzhen SmartPropel Energy System Co.,Ltd
Basic Information
Business Type:Manufacturer, Trading Company
Main Products:Lithium Battery Pack,EV battery Pack, Ebike battery
Location:
Total Employees:
Year Established:
Trade Information
Top 3 Markets:
Accepted Payment Currency:
Nearest Port:
Average Lead Time:0
Overseas Office: No

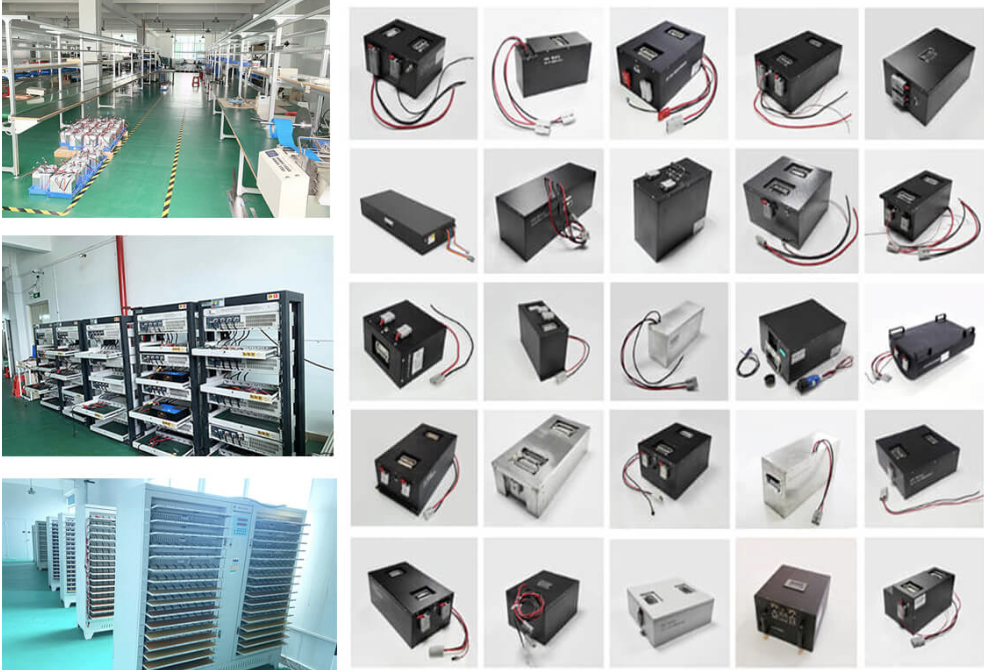

Company Pictures
